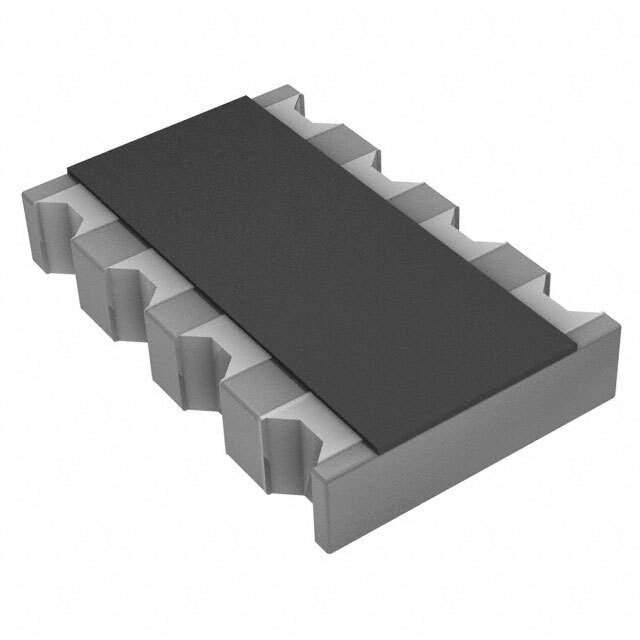

742C083472JP Real Image
Same model may have multiple batches, images only for reference.

742C083472JP

Part No 742C083472JP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 4.7K OHM 1206
Datasheet
742C083472JP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 28 Weeks
Features 4.7k Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Concave, Long Side Terminals
Manufacturer CTS Resistor Products
Series 742
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 1206 (3216 Metric), Concave, Long Side Terminals
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Part Number 742C083472JPCT, 742C083472JPTR, 742C083472JPDKR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 857190-742C083472JP
Ultra Librarian 3D Model Ultra Librarian 742C083472JP CAD Model

Description

The CTS Resistor Products 857190-742C083472JP is a resistor network/array with 4 resistors in an isolated circuit type.

  • Resistance Range: 4.7k Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Per Element: 62.5mW
  • Package: 1206 (3216 Metric), Concave, Long Side Terminals
  • Mounting: Surface Mount
  • Operating Temperature Range: -55°C to 125°C
  • Category: Resistors
  • ECCN: EAR99
  • Open Market: in the open market
  • Supply and Demand Status: Limited
  • Quantity Per Package: 5000
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8533.21.0020
