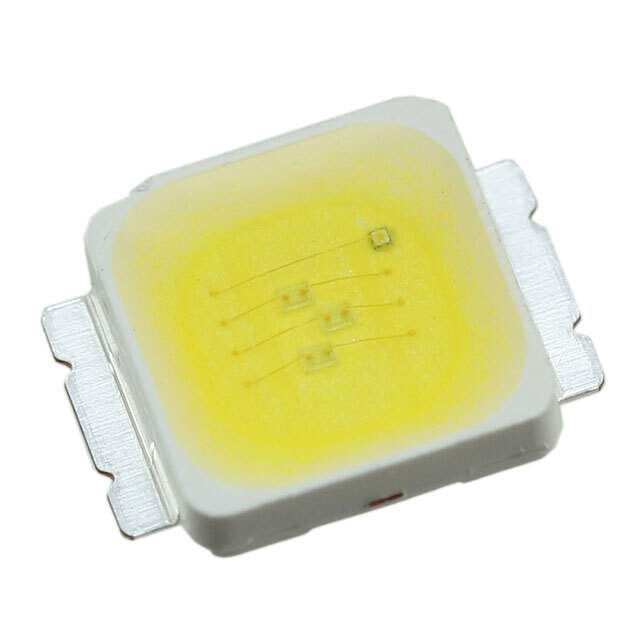

MX3AWT-A1-0000-000E51 Real Image
Same model may have multiple batches, images only for reference.

MX3AWT-A1-0000-000E51

Part No MX3AWT-A1-0000-000E51
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description XLamp LEDs
Datasheet
MX3AWT-A1-0000-000E51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp MX-3
Packaging Reel - TR
Color White, Cool
CCT (K) 6500K
Flux @ 25°C, Current - Test 118 lm (114 lm ~ 122 lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 3.7V
Lumens/Watt @ Current - Test 91 lm/W
CRI (Color Rendering Index) 75 (Typ)
Current - Max 500mA
Viewing Angle 120°
Mounting SMD
Package 2-SMD, Gull Wing, Exposed Pad
Manufacturer Package SMD
Size 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.058" (1.48mm)
Thermal Resistance of Package 11°C/W
Win Source Part Number 1228974-MX3AWT-A1-0000-000E51
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Balance
Family Name MX3AWT-A1-0000-000E51
Introduction Date August 24, 2010
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian MX3AWT-A1-0000-000E51 CAD Model

Description

The Cree XLamp MX-3 is a 2-SMD, gull wing, exposed pad LED package with a viewing angle of 120 degrees. The package size is 0.197 inches (5.00mm) in length and width.

  • Viewing Angle: 120 degrees
  • Package Size: 0.197 inches (5.00mm)
  • Typical Forward Voltage: 3.7V
  • Maximum Forward Current: 500mA
  • Color: White, cool
  • Color Temperature: 6500K
  • Typical Luminous Flux @ 25°C and Current Test: 118 lm (114 lm ~ 122 lm)
  • Luminous Efficiency: 91 lm/W
  • Color Rendering Index (CRI): 75 (Typ)
  • Thermal Resistance: 11°C/W
  • Compliance: Halogen-free standards
  • Estimated EOL Date: 2023
  • Suitable for: Optoelectronic applications
