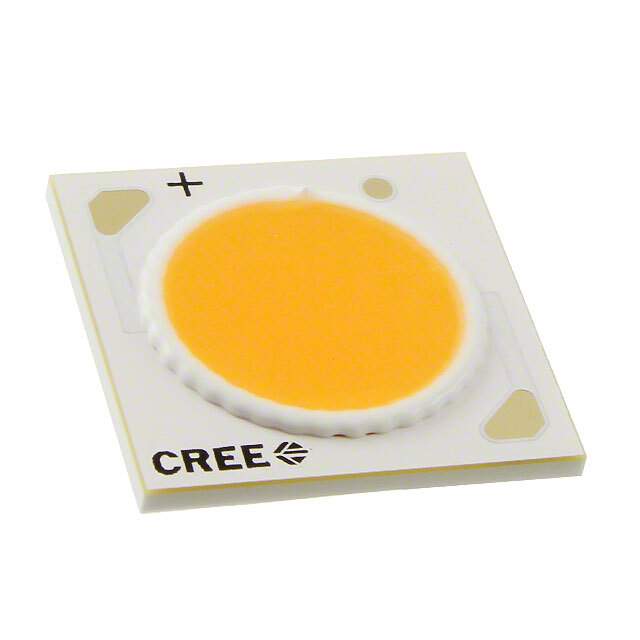

CXA1820-0000-000N00Q435G Real Image
Same model may have multiple batches, images only for reference.

CXA1820-0000-000N00Q435G

Part No CXA1820-0000-000N00Q435G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1820 3500K WHITE SMD
Datasheet
CXA1820-0000-000N00Q435G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1820
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3500K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2340 lm (2260 lm ~ 2420 lm)
Current - Test 550mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 118 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 771969-CXA1820-0000-000N00Q435G
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CXA1820-0000-000N00Q435G CAD Model

Description

The Cree Inc. XLamp CXA1820 is a chip on board (COB) type LED component that is available in white and warm colors.

  • Maximum Current: 1.05A
  • Forward Voltage: 36V
  • Shape: Square
  • Viewing Angle: 115 degrees
  • Lens Type: Flat
  • CCT: 3500K
  • MacAdam Ellipse: 3-step
  • CRI: 80
  • Luminous Efficacy: 118 lm/W @ 550mA
  • LES Diameter: 12.00mm
  • Dimension: 17.85mm L x 17.85mm W
  • Category: Optoelectronics
  • Packaging: Tray
  • Popularity: Medium
