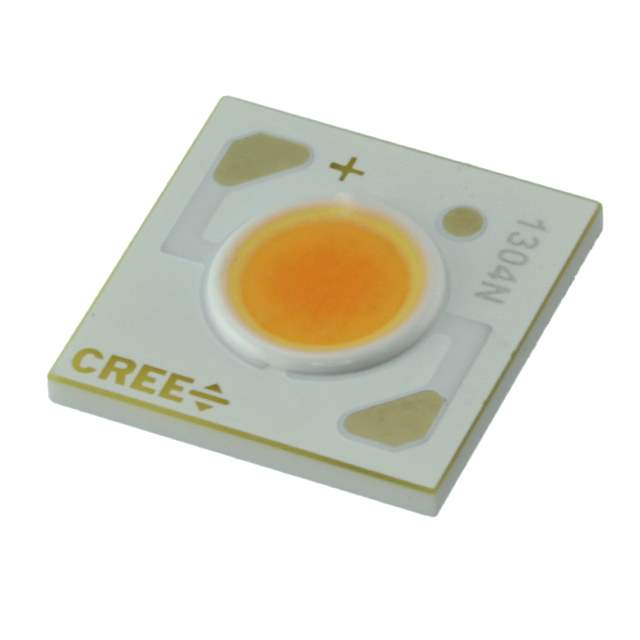

CXA1304-0000-000N0HB457F Real Image
Same model may have multiple batches, images only for reference.

CXA1304-0000-000N0HB457F

Part No CXA1304-0000-000N0HB457F
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY XLAMP CXA1304 WHITE / Chip On Board LED Lighting Module
Datasheet
CXA1304-0000-000N0HB457F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1304
Packaging Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5700K 4-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 425 lm (410 lm ~ 440 lm)
Current - Test 100mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 115 lm/W
Current - Max 250mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 13.35mm L x 13.35mm W
Height 1.70mm
Light Emitting Surface (LES) 6.00mm Diameter
Lens Type Flat
Win Source Part Number 771955-CXA1304-0000-000N0HB457F
Popularity Medium
Supply and Demand Status Limited
Family Name CXA1304
Introduction Date November 07, 2013
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CXA1304-0000-000N0HB457F CAD Model

Description

The Cree Inc. 710319 is a white, cool chip on board (COB) LED with a square configuration.

  • Win Source Part Number: 771955-CXA1304-0000-000N0HB457F
  • Viewing Angle: 115°
  • Category: Optoelectronics
  • Packaging: Tray
  • Maximum Current: 250mA
  • Voltage Forward (Vf) (Typ): 37V
  • Height: 1.70mm
  • Family Name: CXA1304
  • CCT (K): 5700K 4-Step MacAdam Ellipse
  • Lumens/Watt @ Current - Test: 115 lm/W
  • CRI (Color Rendering Index): 80
  • Flux @ Current/Temperature - Test: 425 lm (410 lm ~ 440 lm)
  • Temperature - Test: 85°C
  • Light Emitting Surface (LES): 6.00mm diameter
  • Dimension: 13.35mm L x 13
