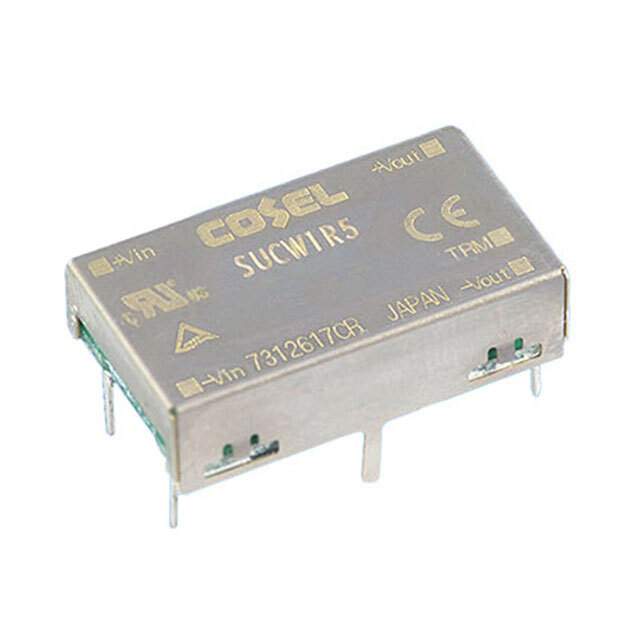

SUCW1R51212C Real Image
Same model may have multiple batches, images only for reference.

SUCW1R51212C

Part No SUCW1R51212C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V -12V 65mA, 65mA 9V - 18V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series SUCW (1.5W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 65mA, 65mA
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 73%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm)
Base Product Number SUCW1R51212
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1350739-SUCW1R51212C
Ultra Librarian 3D Model Ultra Librarian SUCW1R51212C CAD Model

Description

The Cosel SUCW1R51212C is an isolated module DC-DC converter that is designed for ITE (commercial) applications.

  • Applications: ITE (Commercial)
  • Voltage - Input: 9-18V
  • Voltage Isolation: 500V
  • Outputs and Type: 2, Isolated
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Current - Output 1: 65mA
  • Current - Output 2: 65mA
  • Efficiency: 73%
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 85°C (with derating)
