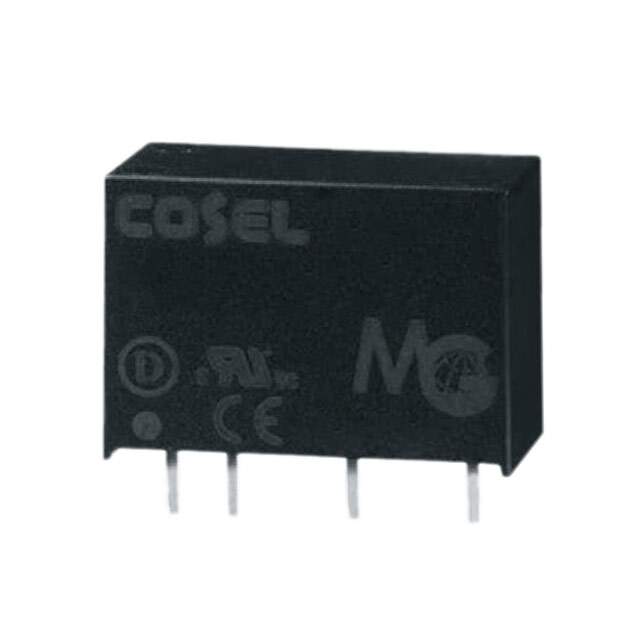

MGFS1R52415 Real Image
Same model may have multiple batches, images only for reference.

MGFS1R52415

Part No MGFS1R52415
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 1.5W / Isolated Module DC DC Converter 1 Output 15V 100mA 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGFS (1.5W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Current - Output (Max) 100mA
Power (Watts) 1.5 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm)
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1337696-MGFS1R52415
Ultra Librarian 3D Model Ultra Librarian MGFS1R52415 CAD Model

Description

The MGFS1R52415 from Cosel USA, Inc. is a 1.5W isolated module DC-DC converter with OCP feature.

  • Power: 1.5W
  • Voltage Isolation: 1.5kV
  • Output: Single
  • Mounting Type: Through Hole
  • Package/Case: 4-SIP Module
  • Operating Temperature: -40°C to 85°C
  • Application: ITE (Commercial)
  • Efficiency: 82%
  • Maximum Output Current: 100mA
  • Voltage Input: 9V to 36V
  • Voltage Output: 15V
