Same model may have multiple batches, images only for reference.

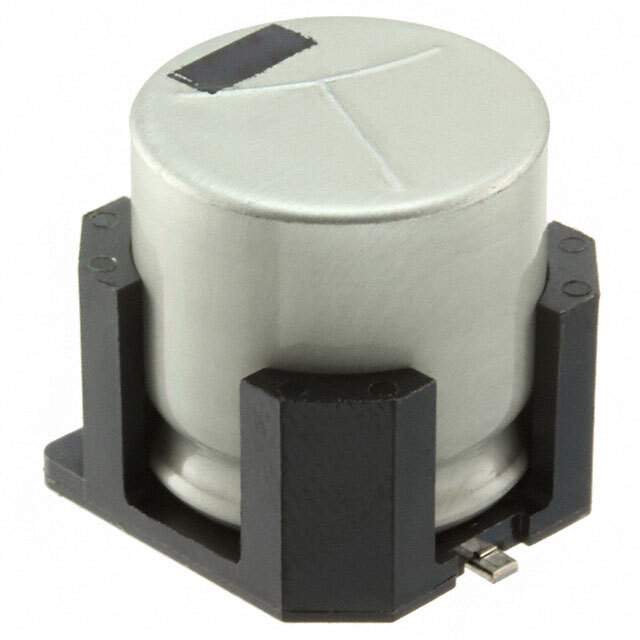

AFK228M25P44VT-F Real Image
Same model may have multiple batches, images only for reference.

AFK228M25P44VT-F

Part No AFK228M25P44VT-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 25V SMD / 2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 35mOhm @ 100kHz 5000 Hrs @ 105°C
Datasheet
AFK228M25P44VT-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series AFK_V
Package Tape & Reel
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 35mOhm @ 100kHz
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, Bypass, Decoupling
Ripple Current @ Low Frequency 1.35 A @ 120 Hz
Impedance 35 mOhms
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.748" (19.00mm)
Surface Mount Land Size 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0020
Other Names 338-4227-6,338-4227-1,338-4227-2
Standard Package 125
Win Source Part Number 1179674-AFK228M25P44VT-F
Ultra Librarian 3D Model Ultra Librarian AFK228M25P44VT-F CAD Model

Description

This aluminum electrolytic capacitor from Cornell Dubilier Electronics is part of the AFK_V series and is ideal for automotive, bypass, and decoupling applications.

  • Capacitance: 2200 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 35mOhm @ 100kHz
  • Impedance: 35 mOhms
  • Lifetime: 5000 hours @ 105°C
  • Polarization: Polarized
  • Package: Radial, can - SMD
  • Surface Mount Land Size: 0.669" L x 0.669" W (17.00mm x 17.00mm)
  • Package Quantity: 125
  • AEC-Q200: Rated
  • Ripple Current @ Low Frequency: 1.35 A @ 120 Hz
