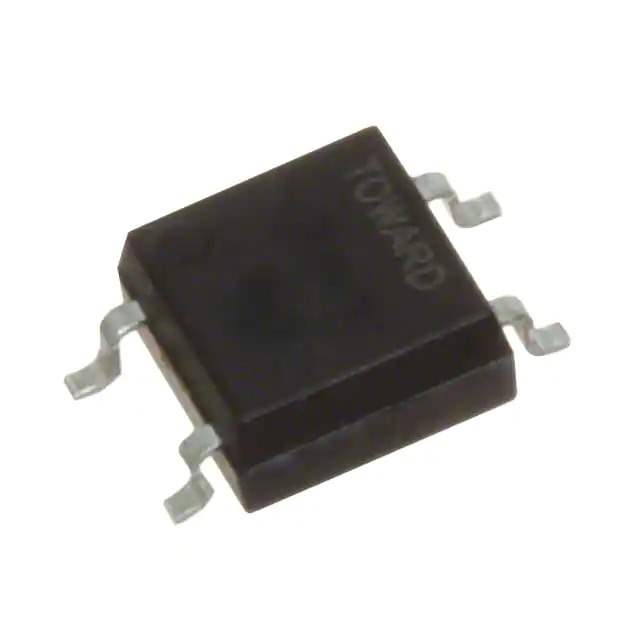

AB30S Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Comus International
Series 30
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.17VDC
Voltage - Load 0 V ~ 400 V
Load Current 100 mA
On-State Resistance (Max) 30 Ohms
Termination Style Gull Wing
Package / Case 4-SOP (0.173", 4.40mm)
Supplier Device Package 4-SOP
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0055
Win Source Part Number 849661-AB30S
Ultra Librarian 3D Model Ultra Librarian AB30S CAD Model

Description

The 849661-AB30S solid state relay is a reliable electronic component manufactured by Comus International.

  • Series: 30
  • Termination Style: Gull Wing
  • Voltage Input: 1.17VDC
  • Output Type: AC, DC
  • Circuit: SPST-NO
  • On-State Resistance: 30 Ohms
  • Load Current: 100mA
  • Voltage Load: 0V to 400V
  • Mounting: Surface Mountable
  • Package: 100 pieces
  • Status: Active
