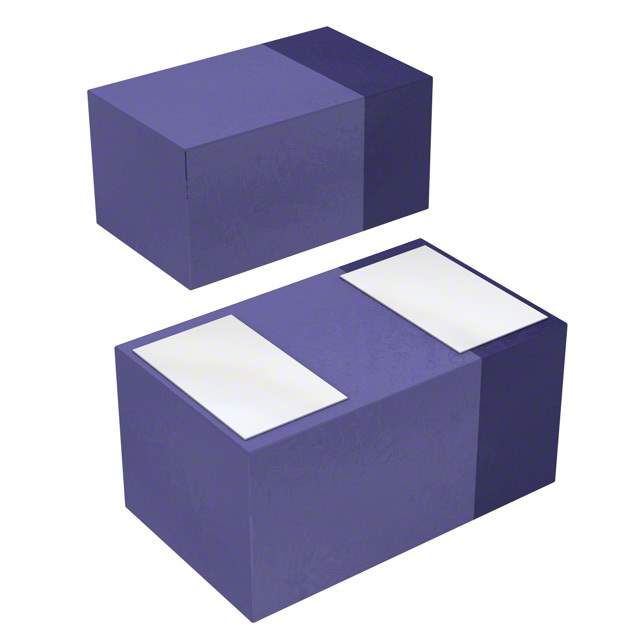

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 350mV @ 10mA
Current - Reverse Leakage @ Vr 10μA @ 10V
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 050187-CDBQR0130L
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CDBQR0130L CAD Model

Description

CDBQR0130L

The CDBQR0130L Schottky Barrier Rectifier excels in fast-switching applications, providing low forward voltage drop that improves the efficiency of power supply designs.

  • Applications: Power management, Voltage regulation, Battery charging systems, Renewable energy systems.
  • Features: Low forward voltage drop, Fast recovery time, High efficiency.
  • Benefits: Reduces power loss, Increases power supply efficiency, Suitable for fast-switching applications.

The CDBQR0130L is optimized for low power consumption and enhanced performance in compact electronic designs.
