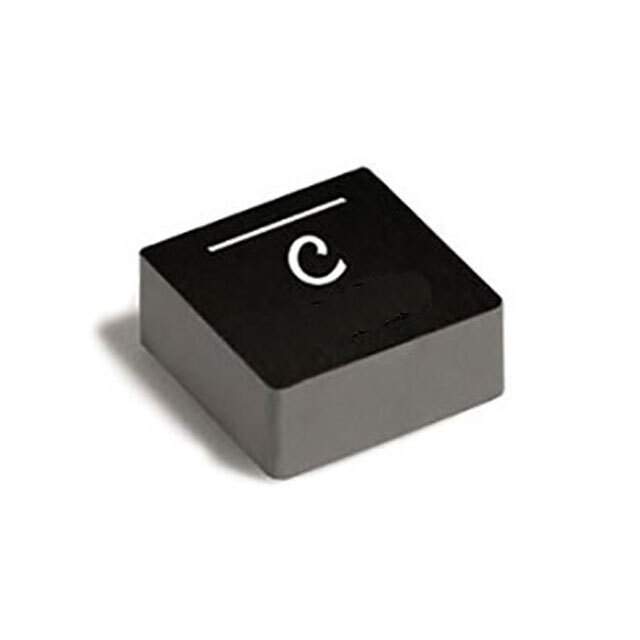

XGL4020-222MEC Real Image
Same model may have multiple batches, images only for reference.

XGL4020-222MEC

Part No XGL4020-222MEC
Manufacturer Coilcraft
Catalog Fixed Inductors
Datasheet
XGL4020-222MEC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr COILCRAFT
Series XGL4020
Package Strip
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 8.9 A
Current - Saturation (Isat) 6.2A
Shielding Shielded
DC Resistance (DCR) 21.5mOhm Max
Frequency - Self Resonant 40MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.083" (2.10mm)
Other Names 2457-XGL4020-222ME_TR,2457-XGL4020-222ME_,2457-XGL4020-222MEC,2457-XGL4020-222ME_
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272966-XGL4020-222MEC
Ultra Librarian 3D Model Ultra Librarian XGL4020-222MEC CAD Model

Description

The XGL4020 series inductor from Coilcraft is a shielded, fixed inductor with an inductance of 2.2 µH and a DC resistance of 21.5mOhm Max.

  • AEC-Q200 Rated: Yes
  • Current Rating: 8.9 A
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Frequency Self-Resonant: 40MHz
  • Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm)
