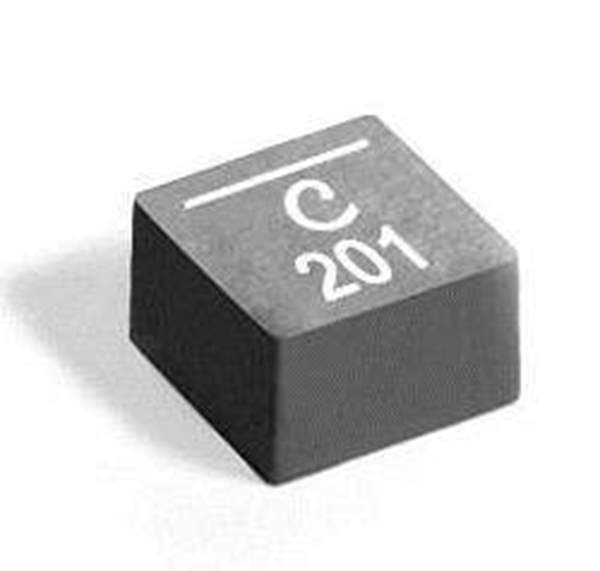

Same model may have multiple batches, images only for reference.

XEL4030-682MEB

Name: XEL4030-682MEB
Brand: Coilcraft
SKU: WS1309741
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XEL4030-682MEB
Manufacturer	Coilcraft
Catalog	Fixed Inductors
Description	Power Inductors - SMD 6.8uH Shld 20% 3.9A 74.1mOhms AECQ2
Datasheet	XEL4030-682MEB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1309741-XEL4030-682MEB
Manufacturer	Coilcraft
Category	Power Inductors - SMD
Type	Power Choke
Package / Case	4 mm x 3.1 mm x 4 mm
Shielding	Shielded
Inductance	6.8 uH
Tolerance	20 ns
Current - Max	3.9 A
DC Resistance (DCR) (Max)	74.1 mOhms
Saturation Current	3.6 A
Ultra Librarian 3D Model	Ultra Librarian XEL4030-682MEB CAD Model

Alternative Products

Description

Extremely low DCR and ultra low AC losses for high switching frequencies (2 to 5 MHz)
AEC-Q200 Grade 1 (–40°C to +125°C)
Superior current handling with soft saturation characteristics
Can withstand high current spikes
Designed for high temperature applications
