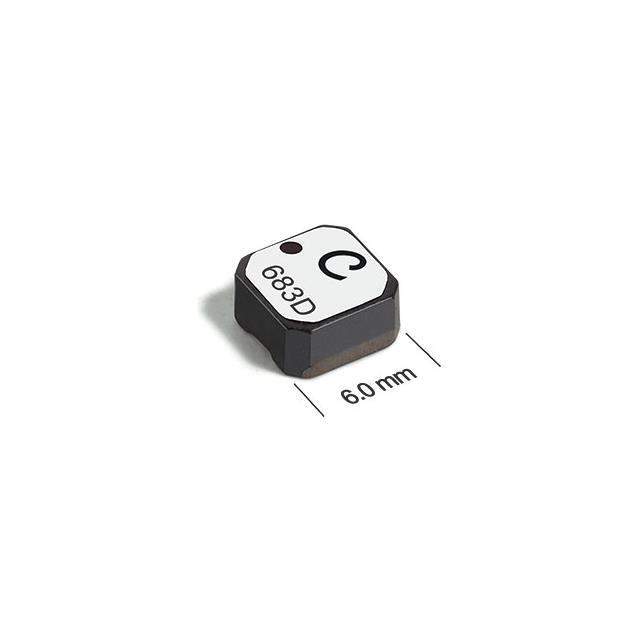

LPS6235-335MRC Real Image
Same model may have multiple batches, images only for reference.

LPS6235-335MRC

Part No LPS6235-335MRC
Manufacturer Coilcraft
Catalog Fixed Inductors
Description POWER INDUCTOR, SHIELDED, 20% TO / 3.3 mH Shielded Inductor 180 mA 9.5Ohm Max Nonstandard
Datasheet
LPS6235-335MRC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr COILCRAFT
Series LPS6235
Package Strip
Material - Core Ferrite
Inductance 3.3 mH
Current Rating (Amps) 180 mA
Current - Saturation (Isat) 100mA
Shielding Shielded
DC Resistance (DCR) 9.5Ohm Max
Frequency - Self Resonant 1.1MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.244" L x 0.244" W (6.20mm x 6.20mm)
Height - Seated (Max) 0.138" (3.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Other Names 2457-LPS6235-335MRC
Standard Package 1
Win Source Part Number 1070715-LPS6235-335MRC
Ultra Librarian 3D Model Ultra Librarian LPS6235-335MRC CAD Model

Description

The LPS6235-335MRC is a fixed inductor from Coilcraft with a 3.3 mH inductance and a shielding feature.

  • Inductance: 3.3 mH
  • Shielding: Yes
  • Maximum Height: 0.138 inches
  • Operating Temperature: -40°C to 125°C
  • DC Resistance: 9.5 Ohm Max
  • Current Rating: 180 mA
