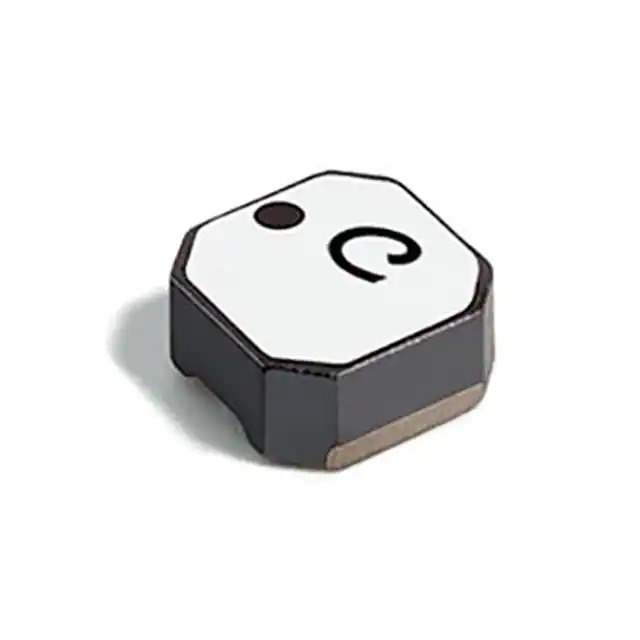

LPS4018-153MRC Real Image
Same model may have multiple batches, images only for reference.

LPS4018-153MRC

Part No LPS4018-153MRC
Manufacturer Coilcraft
Catalog Fixed Inductors
Description FIXED IND 15UH 1.12A 260MOHM SMD
Datasheet
LPS4018-153MRC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr COILCRAFT
Series LPS4018
Package Strip
Product Status Active
Type Drum Core
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 860mA
Shielding Shielded
DC Resistance (DCR) 260mOhm Max
Frequency - Self Resonant 32MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.154" L x 0.154" W (3.90mm x 3.90mm)
Height - Seated (Max) 0.071" (1.80mm)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 724640-LPS4018-153MRC
Ultra Librarian 3D Model Ultra Librarian LPS4018-153MRC CAD Model

Description

The 724640-LPS4018-153MRC is a fixed inductor from the LPS4018 series by COILCRAFT.

  • Type: Drum Core
  • Package: Shielded
  • Size: 0.154" L x 0.154" W (3.90mm x 3.90mm)
  • Inductance: 15 µH
  • Seated Height: 0.071" (1.80mm)
  • Tolerance: ±20%
  • AEC-Q200: Yes
  • DCR: 260mOhm Max
  • Current Rating: 800 mA
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
