Same model may have multiple batches, images only for reference.

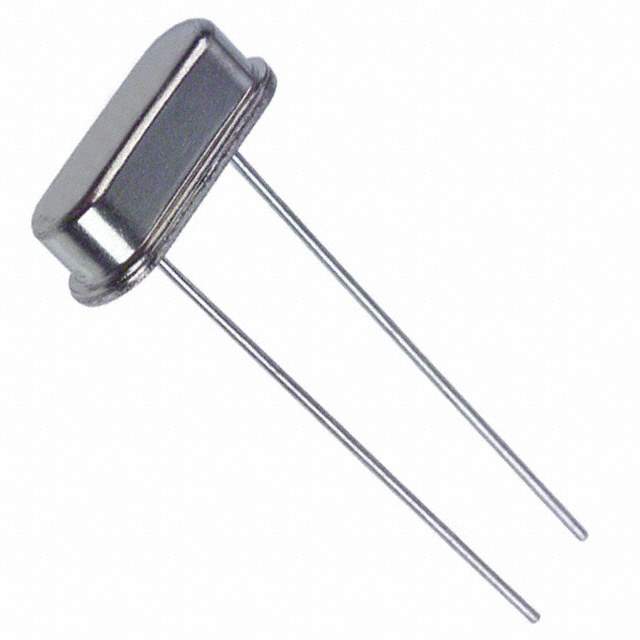

HC-49/U-S25000000ABJB Real Image
Same model may have multiple batches, images only for reference.

HC-49/U-S25000000ABJB

Part No HC-49/U-S25000000ABJB
Manufacturer Citizen Finedevice Co Ltd
Catalog Crystals
Description CRYSTAL 25.0000MHZ 18PF TH / 25 MHz ±30ppm Crystal 18pF 50 Ohms HC-49/US
Datasheet
HC-49/U-S25000000ABJB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Citizen Finedevice Co Ltd
Series HC49US
Package Bulk
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Through Hole
Package / Case HC-49/US
Dimension 0.453" L x 0.183" W (11.50mm x 4.66mm)
Height - Seated (Max) 0.138" (3.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names HC49US25.000MABJB,300-6048-NDR,300-6048-NR,HC49US-25.000MABJ,HC49US25.000MABJUB,300-6048,HC49US25.000MABJ-UB,300-8513-ND,HC49US25.000MABJ,300-8513,HC49US-25.000MABJ-UB
Standard Package 1,000
Win Source Part Number 1103450-HC-49/U-S25000000ABJB
Ultra Librarian 3D Model Ultra Librarian HC-49/U-S25000000ABJB CAD Model

Description

The HC-49/U-S25000000ABJB is a MHz crystal with a frequency of 25 MHz.

  • ESR: 50 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Series: HC49US
  • Package: Through-hole HC-49/US
  • Operating Temperature: -10°C to 60°C
  • Load Capacitance: 18pF
  • Package Format: Bulk
  • Standard Package: 1,000
