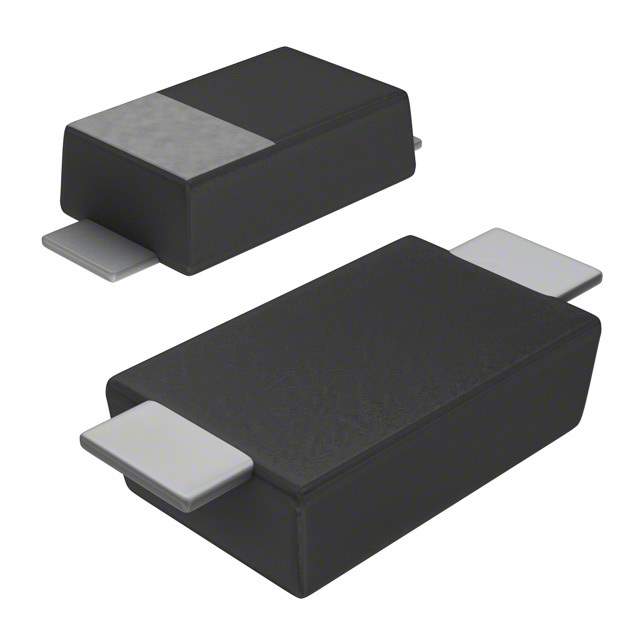

The CMMR1U-02 TR is a surface-mount Schottky rectifier manufactured by Central Technologies. This diode is designed for applications requiring fast switching speeds and low forward voltage drop. The "TR" suffix typically denotes tape and reel packaging for automated assembly processes.

Applications:

• High-frequency rectification
• Switch-mode power supplies (SMPS)
• DC-DC converters
• Reverse polarity protection
• Free-wheeling diode applications

Features:

• Low forward voltage drop: Reduces power loss and improves efficiency.
• Fast switching speed: Minimizes switching losses in high-frequency circuits.
• Small surface-mount package: Allows for compact and efficient PCB designs.
• High surge current capability: Provides robust performance under transient conditions.
• Tape and reel packaging: Suitable for automated assembly.

Benefits:

• Improved power efficiency: The low forward voltage drop minimizes power dissipation.
• Enhanced system performance: Fast switching speed allows for higher frequency operation.
• Compact design: The small package enables integration into densely populated boards.
• Increased reliability: Robust design ensures dependable performance.
• Simplified manufacturing: Tape and reel packaging streamlines assembly.

Technical Specifications:

The CMMR1U-02 TR typically features a maximum repetitive peak reverse voltage (VRRM) of 20V and an average forward current (IF(AV)) of 1A. It has a low forward voltage drop (VF) around 0.3 to 0.5V. It's usually available in a small surface-mount package like a SOD-123 or similar. For precise specifications, refer to the Central Technologies datasheet.

In summary, the Central Technologies CMMR1U-02 TR Schottky rectifier is ideal for applications requiring fast switching, low forward voltage drop, and efficient power conversion, particularly in high-frequency circuits and compact designs.
