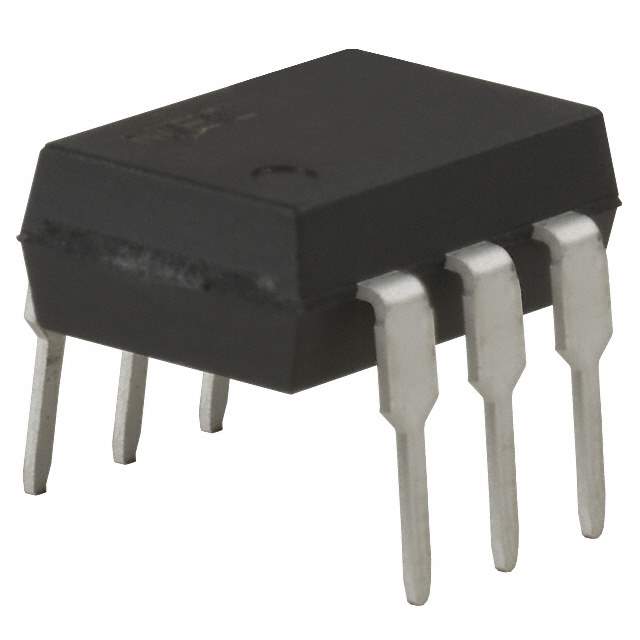

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer CEL
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 30 Ohm
Load Current 150mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 400 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 6-DIP
Relay Type Relay
Win Source Part Number 131489-PS7341-1A-A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PS7341-1A-A CAD Model

Description

The CEL 131489-PS7341-1A-A is a through-hole relay designed for use in various electronic circuits.

  • Input Voltage: 1.2VDC
  • Output Type: AC, DC
  • Circuit: SPST-NO (1 Form A)
  • Load Current: 150mA
  • Voltage Load: 0 to 400 V
  • Maximum On Resistance: 30 Ohm
  • Package: 6-DIP tube/rail
  • Component Status: obsolete (EOL)
  • Supply and demand status: limited
