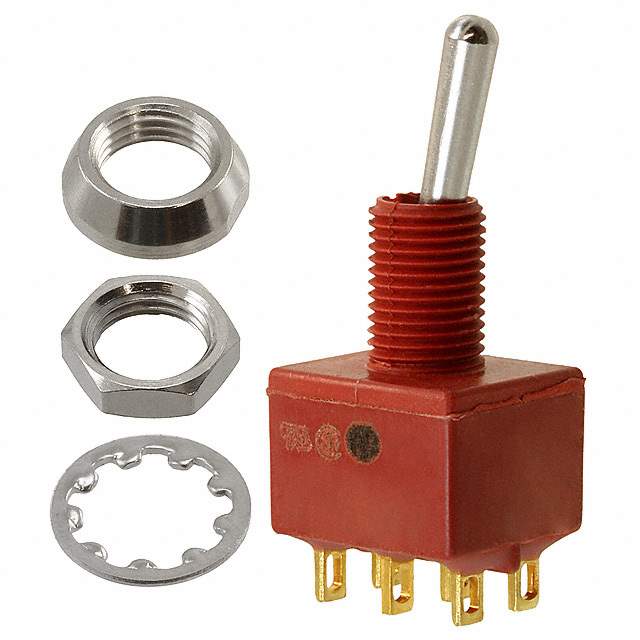

E201SYZQE Real Image
Same model may have multiple batches, images only for reference.

E201SYZQE

Part No E201SYZQE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE DPDT 7.5A 125V / Toggle Switch DPDT Panel Mount
Datasheet
E201SYZQE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series E
Package Tray
Mounting Type Panel Mount
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 7.5A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 10.16mm
Illumination Non-Illuminated
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 40,000 Cycles
Base Product Number E201
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CKN9857,2266-E201SYZQE,*E201SYZQE
Standard Package 1
Win Source Part Number 1127529-E201SYZQE
Ultra Librarian 3D Model Ultra Librarian E201SYZQE CAD Model

Description

The Win Source Part Number 1127529-E201SYZQE is a toggle switch categorized under Switches>Toggle Switches.

  • Product: Toggle Switch
  • Category: Switches>Toggle Switches
  • Circuit: DPDT
  • Switch Function: On-On
  • Actuator Type: Standard Round
  • Actuator Length: 10.16mm
  • Voltage Rating: 125 V (AC), 28 V (DC)
  • Current Rating: 7.5A (AC/DC)
  • Ingress Protection: IP57 (dust protected and waterproof)
  • Panel Cutout Dimension: 6.35mm Dia (circular)
  • Mounting Type: Panel Mount
  • Illumination Type: Non-Illuminated
  • Bushing Thread: 1/4-40
  • Epoxy Sealed: Yes
  • Temperature Range: -30°C ~ 85°C
  • Electrical Life: 40,000 cycles
  • Package: Tray
