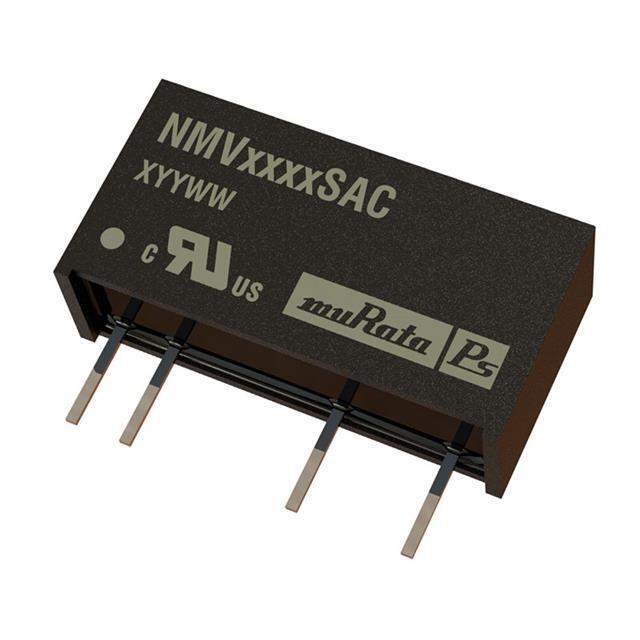

The NMV0505SA is a DC-DC isolated converter manufactured by C&D Technologies (now Murata Power Solutions). It is designed to provide electrical isolation between the input and output, making it suitable for applications where safety and noise isolation are critical. This converter accepts a 5V input and provides a regulated 5V output.

Applications

• Industrial automation equipment
• Medical devices
• Isolated power supplies
• Data acquisition systems
• Sensor isolation

Features

• Input Voltage: 5VDC
• Output Voltage: 5VDC
• Isolation Voltage: Typically 1kVDC or higher
• Short-Circuit Protection: Protects the converter from damage due to output shorts
• Compact Size: Space-saving design for easy integration
• SIP Package: Single In-Line Package for easy mounting

Benefits

• Electrical Isolation: Prevents ground loops and protects sensitive circuits from voltage spikes.
• Safety: Provides safety isolation in medical and industrial applications.
• Noise Reduction: Isolates noise from the input power supply.
• Reliable Operation: Robust design ensures stable performance in demanding environments.
• Easy to Use: Simple integration into existing circuits.

The NMV0505SA isolated DC-DC converter is an essential component for applications requiring galvanic isolation. Its compact size and robust design make it ideal for industrial and medical equipment. The short-circuit protection feature enhances reliability by preventing damage from output faults. The isolation voltage provides a barrier against high-voltage transients and ground loops, ensuring the safety and integrity of the connected circuits. The device is commonly used to power isolated sensors, data acquisition systems, and other sensitive electronics. The converter meets industry standards for safety and performance, providing a reliable and cost-effective solution for isolated power applications.
