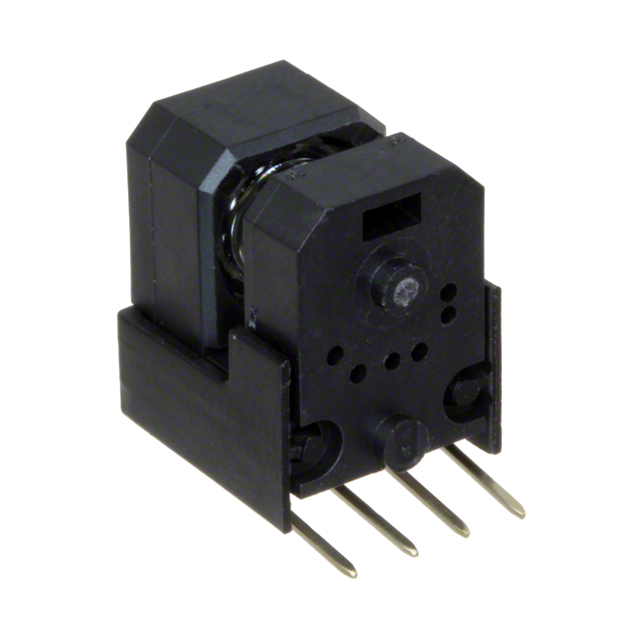

HEDS-9701-F54 Broadcom Limited
Same model may have multiple batches, images only for reference.

HEDS-9701-F54

Part No HEDS-9701-F54
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER SMALL 2CH 256CPR TABLESS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 256
Supply Voltage - Operating 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Right Angle
Termination Style Terminal Pins
Win Source Part Number 204736-HEDS-9701-F54
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HEDS-9701-F54 CAD Model

Description

The Broadcom Limited 204736-HEDS-9701-F54 is a quadrature (incremental) encoder.

  • Orientation: Right angle
  • Termination Style: Terminal pins
  • Output Type: Quadrature (incremental)
  • Detent: No detent
  • Switch: No built-in switch
  • Pulses per Revolution: 256
  • Mounting: Chassis mount
  • Encoder Type: Optical
  • Actuator Type: Codewheel not included
  • Application: Sensors and transducers
