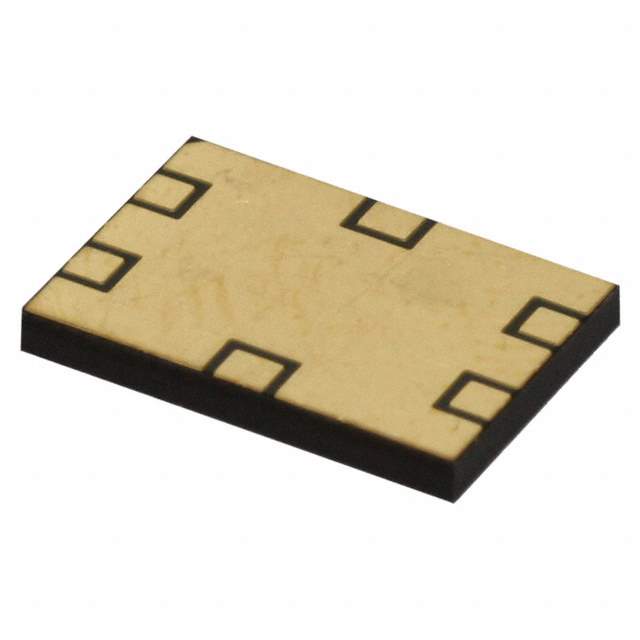

ALM-32120-BLKG Real Image
Same model may have multiple batches, images only for reference.

ALM-32120-BLKG

Part No ALM-32120-BLKG
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description 0.7GHz - 1.0GHz 2 Watt High Linearity Amplifier | IC RF AMP GSM 700MHZ-1GHZ 20MCOB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Strip
Status Obsolete
Frequency 700MHz ~ 1GHz
P1dB 34.4dBm
Gain 14.3dB
Noise Figure 2.5dB
RF Type GSM, PCS, W-CDMA, WiMAX
Supply Voltage (V) 5V
Supply Current 1.5A
Test Frequency 900MHz
Manufacturer Package 20-SMD Module, No Lead
Supplier Device Package 20-MCOB (7x10)
Manufacturer Pack Quantity 100
MSL Level 3 (168 Hours)
Win Source Part Number 1143344-ALM-32120-BLKG
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ALM-32120-BLKG CAD Model

Description

The Broadcom ALM-32120-BLKG is an obsolete RF Module with a Test Frequency of 900MHz and a Frequency range of 700MHz ~ 1GHz.

  • Gain: 14.3dB
  • Noise Figure: 2.5dB
  • P1dB: 34.4dBm
  • Supply Current: 1.5A
  • RF Type: GSM, PCS, W-CDMA, WiMAX
  • Supplier Device Package: 20-MCOB (7x10)
  • Manufacturer Package: 20-SMD Module, No Lead
  • Manufacturer Homepage: www.avagotech.com
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 100
  • MSL Level: 3 (168 Hours)
  • Supply Voltage: 5V
