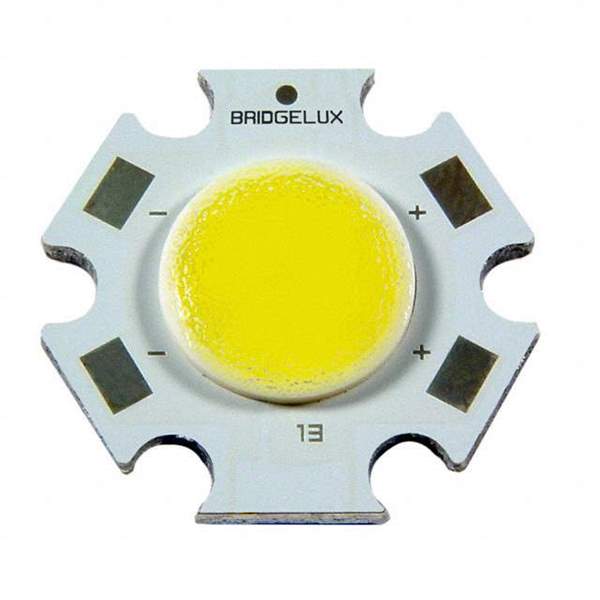

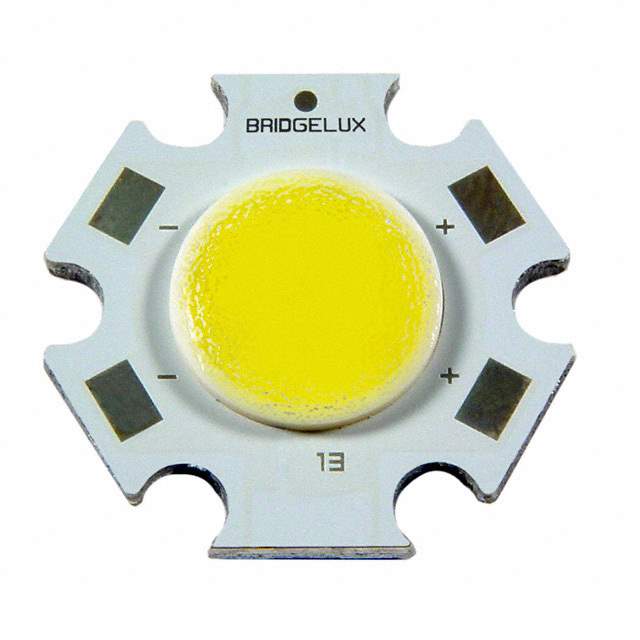

BXRB-56C0700-A Real Image
Same model may have multiple batches, images only for reference.

BXRB-56C0700-A

Part No BXRB-56C0700-A
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED COOL WHITE 5600K 780LM
Datasheet
BXRB-56C0700-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Bridgelux
Status Obsolete(EOL)
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5600K
Configuration Starboard
Flux @ Current/Temperature - Test 780 lm (Typ)
Current - Test 365mA
Temperature - Test 25°C
Forward Voltage 17.2V
Lumens/Watt @ Current - Test 112 lm/W
Current - Max 700mA
CRI (Color Rendering Index) 70
Viewing Angle 120°
Height 3.20mm
Light Emitting Surface (LES) 10.50mm Diameter
Lens Type Domed
Win Source Part Number 85645-BXRB-56C0700-A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BXRB-56C0700-A CAD Model

Description

Description for BXRB-56C0700-A

The BXRB-56C0700-A is a high-performance LED module designed for diverse lighting applications. Known for its high luminosity and energy efficiency, it is ideal for both residential and commercial projects.

  • Features & Benefits
    • High luminous efficacy
    • Robust build quality
    • Energy-efficient design
    • Long operational life
  • Applications & Projects
    • Architectural lighting
    • Commercial indoor lighting
    • Street lights and outdoor lighting solutions
    • Automotive lighting systems

This LED module's advanced technology ensures a superior light distribution pattern, making it a popular choice among designers and engineers.
