Same model may have multiple batches, images only for reference.

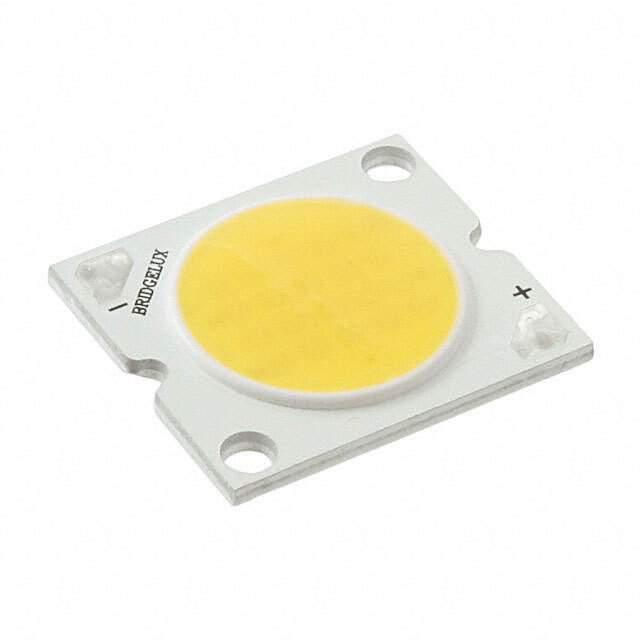

BXRA-W1202-00Q00 Real Image
Same model may have multiple batches, images only for reference.

BXRA-W1202-00Q00

Part No BXRA-W1202-00Q00
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY WARM WHITE 1320LM / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Rectangle
Datasheet
BXRA-W1202-00Q00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series ES
Package Tube
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K
Configuration Rectangle
Luminous Flux @ Current/Temperature 1320lm (Typ)
Current - Test 1.2A
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 15.1V
Lumens/Watt @ Current - Test 73 lm/W
Current - Max 2.5A
CRI (Color Rendering Index) 82 (Typ)
Viewing Angle 120°
Dimension 22.80mm L x 25.80mm W
Height 3.50mm
Lens Type Domed
Other Names BXRA-W1202,976-1006,BXRA-W1202-00000
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241643-BXRA-W1202-00Q00
Ultra Librarian 3D Model Ultra Librarian BXRA-W1202-00Q00 CAD Model

Description

The Bridgelux BXRA-W1202-00000 is a white and warm Chip On Board (COB) LED module that is a part of the ES series.

  • Current Rating: 2.5A
  • Viewing Angle: 120 degrees
  • Shape: Rectangle
  • Forward Voltage: 15.1V
  • CCT: 3000K
  • CRI: 82
  • Luminous Flux: 1320lm @ a current/temperature of 1.2A and 25 degrees Celsius respectively
  • Length: 22.80mm
  • Width: 25.80mm
  • Height: 3.50mm
  • Package: Tube
  • Standard Package: 20
  • Status: Obsolete
  • ECCN: EAR99
  • HTSUS: 8541.41.0000
