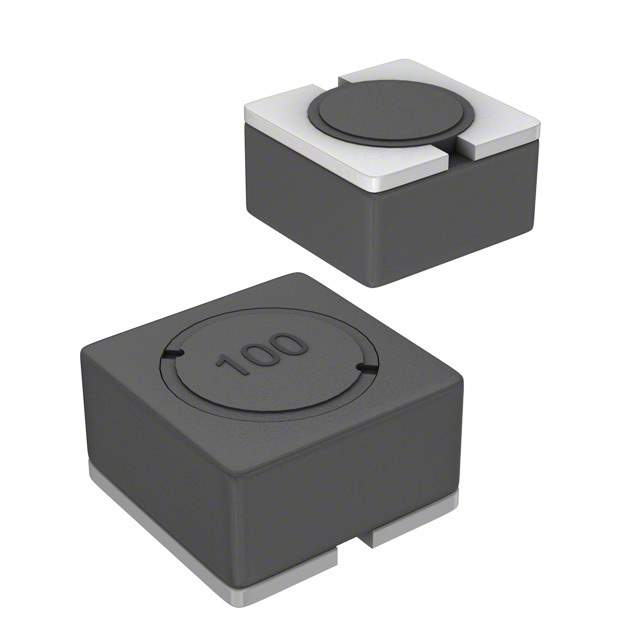

SRR6038-8R2Y

Name: SRR6038-8R2Y
Brand: Bourns Inc.
SKU: 1110675
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR6038-8R2Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 8.2UH 2.2A 34 MOHM SMD / 8.2 µH Shielded Drum Core, Wirewound Inductor 2.2 A 34mOhm Max Nonstandard
Datasheet	SRR6038-8R2Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR6038
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	8.2 µH
Tolerance	±30%
Current Rating (Amps)	2.2 A
Current - Saturation (Isat)	2.45A
Shielding	Shielded
DC Resistance (DCR)	34mOhm Max
Q @ Freq	7.4 @ 7.96MHz
Frequency - Self Resonant	29.6MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max)	0.157" (4.00mm)
Base Product Number	SRR6038
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	SRR6038-8R2Y-ND,SRR60388R2Y,SRR6038-8R2YTR,SRR6038-8R2YCT,SRR6038-8R2YDKR
Standard Package	1,000
Win Source Part Number	1110675-SRR6038-8R2Y
Ultra Librarian 3D Model	Ultra Librarian SRR6038-8R2Y CAD Model

Alternative Products

Description

The Bourns Inc. SRR6038-8R2Y is a high-quality electronic component that is designed for use in various electronic devices.

Inductance: 8.2 μH
Temperature Range: -40°C ~ 125°C
DC Resistance (DCR): 34mOhm Max
Material: Ferrite
Q @ Freq: 7.4 @ 7.96MHz
Frequency - Self-Resonant: 29.6MHz
Tolerance: ±30%
Type: Drum Core, Wirewound, Fixed Inductor
Shielded: Yes
Manufacturer: Bourns Inc.
