Same model may have multiple batches, images only for reference.

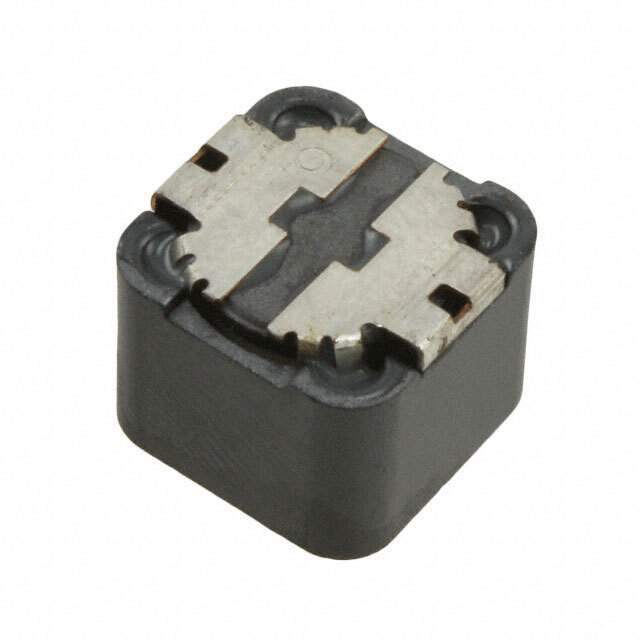

SRR1210-180M Real Image
Same model may have multiple batches, images only for reference.

SRR1210-180M

Part No SRR1210-180M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 18UH 5.5A 35 MOHM SMD / 18 µH Shielded Drum Core, Wirewound Inductor 5.5 A 35mOhm Max Nonstandard
Datasheet
SRR1210-180M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1210
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 18 µH
Tolerance ±20%
Current Rating (Amps) 5.5 A
Current - Saturation (Isat) 5.1A
Shielding Shielded
DC Resistance (DCR) 35mOhm Max
Q @ Freq 13 @ 2.52MHz
Frequency - Self Resonant 8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Base Product Number SRR1210
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRR1210-180MTR,SRR1210180M,SRR1210-180MCT,SRR1210-180M-ND,SRR1210-180MDKR
Standard Package 250
Win Source Part Number 969324-SRR1210-180M
Ultra Librarian 3D Model Ultra Librarian SRR1210-180M CAD Model

Description

The SRR1210-180M is a drum core, wirewound inductor that belongs to the SRR1210 series of shielded fixed inductors.

  • Series: SRR1210
  • Type: shielded fixed inductors
  • Core Type: drum core, wirewound
  • Mounting: surface mount device
  • Package: tape and reel
  • Inductance: 18 µH
  • Tolerance: ±20%
  • Core Material: ferrite
  • Seated Height: 0.394" (10.00mm) (Max)
  • Dimension: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • DCR: 35mOhm Max
  • Isat: 5.1A
  • Q @ Freq: 13 @ 2.52MHz
  • Self-Resonant Frequency: 8MHz
  • Operating Temperature: -40°C to 125°C
  • Package: nonstandard
  • Standard Package: 250
