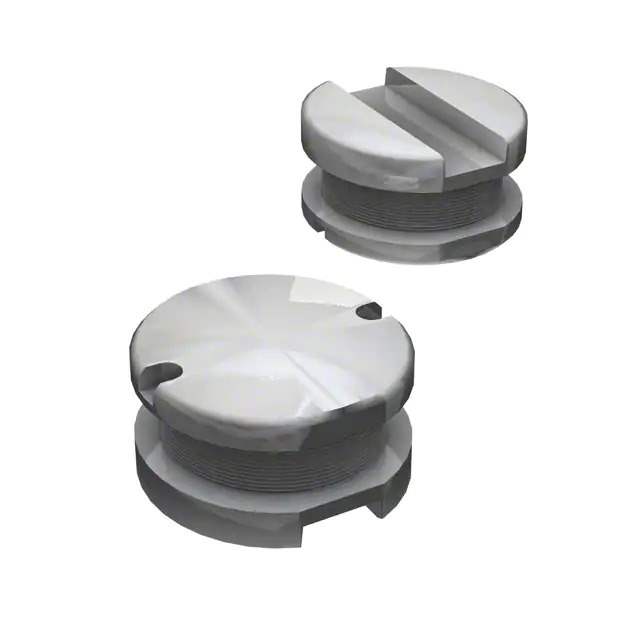

Same model may have multiple batches, images only for reference.

SDR1307-681KL

Name: SDR1307-681KL
Brand: Bourns Inc.
SKU: 664804
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SDR1307-681KL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 680UH 800MA 1 OHM SMD
Datasheet	SDR1307-681KL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Bourns Inc.
Series	SDR1307
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	680 µH
Tolerance	±10%
Current Rating (Amps)	800 mA
Current - Saturation (Isat)	1.2A
Shielding	Unshielded
DC Resistance (DCR)	1Ohm Max
Q @ Freq	10 @ 796kHz
Frequency - Self Resonant	1.6MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max)	0.287" (7.30mm)
Base Product Number	SDR1307
Standard Package	400 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
California Prop 65	Warning Information
Win Source Part Number	664804-SDR1307-681KL
Ultra Librarian 3D Model	Ultra Librarian SDR1307-681KL CAD Model

Alternative Products

Description

The SDR1307-681KL is a drum core, wirewound inductor from Bourns Inc.

Inductor Type: Fixed
Inductance: 680 µH
Tolerance: ±10%
Shielding: Unshielded
Size Dimension: 0.512" L x 0.512" W (13.00mm x 13.00mm)
Operating Temperature: -40°C to 125°C
Mounting Type: Surface Mount
Package: Nonstandard
DC Resistance: 1 Ohm max
Current Rating: 800 mA
Q @ Freq: 10 @ 796kHz
Frequency Self-Resonant: 1.6MHz
Core Material: Ferrite
RoHS Compliance: Compliant
Product Status: Active
Standard Package: 400 pcs
