Same model may have multiple batches, images only for reference.

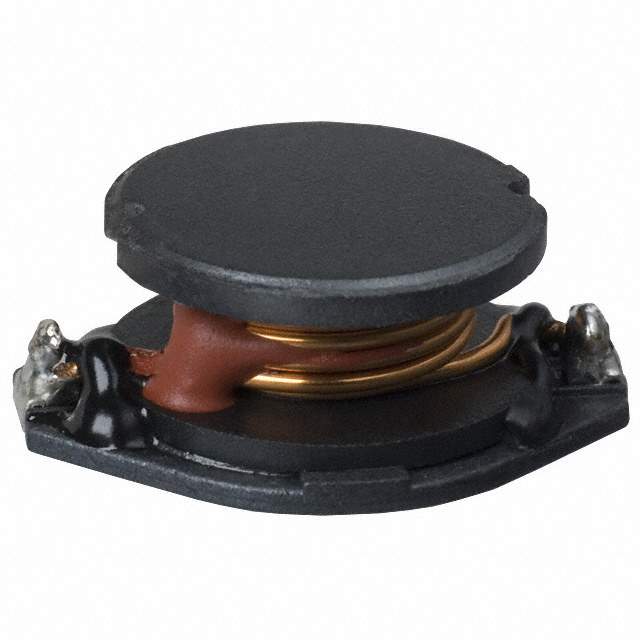

PM5022-221M-RC Real Image
Same model may have multiple batches, images only for reference.

PM5022-221M-RC

Part No PM5022-221M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 220UH 1.1A 420 MOHM
Datasheet
PM5022-221M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 220μH
Tolerance ±20%
Current Rating 1.1A
Current - Saturation 2.2A
DC Resistance (DCR) 420 mOhm
Q @ Freq 20 @ 4.5MHz
Frequency - Self Resonant 796kHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.272" (6.90mm)
Win Source Part Number 111824-PM5022-221M-RC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PM5022-221M-RC CAD Model

Description

The Bourns Inc. 111824-PM5022-221M-RC is a wirewound inductor with a current rating of 1.1A and an inductance of 220μH.

  • Height: 0.272" (6.90mm)
  • Mounted Using: SMD (SMT) technology
  • Tolerance: ±20%
  • Material: ferrite material
  • DC Resistance (DCR): 420 mOhm
  • Frequency Range: 796kHz
  • Status: currently in active status and has a medium popularity.
