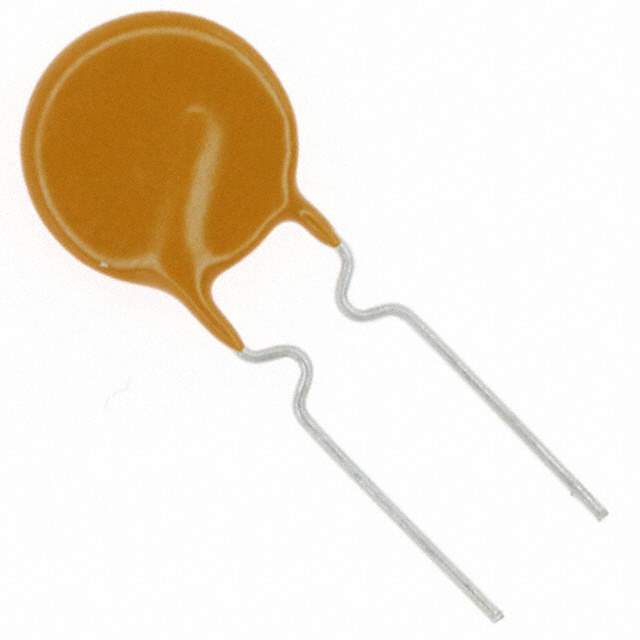

MF-R160 Real Image
Same model may have multiple batches, images only for reference.

MF-R160

Part No MF-R160
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE 1.6A HOLD
Datasheet
MF-R160 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Max) 1.6A
Current - Trip (It) 3.2A
Time to Trip 8s
Resistance - Initial (Ri) (Min) 55 mOhm
Resistance - Post Trip (R1) (Max) 150 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.402" Dia x 0.118" W (10.20mm x 3.00mm)
Height - Seated (Max) 0.661" (16.80mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003419-MF-R160
Ultra Librarian 3D Model Ultra Librarian MF-R160 CAD Model

Description

The MF-R160 electronic component from Bourns Inc. is a polymeric type circuit protection product.

  • Height: 0.661" (16.80mm)
  • Thickness: 0.118" W (3.00mm)
  • Win Source Part Number: 003419-MF-R160
  • Maximum Voltage: 30V
  • Maximum Current: 40A
  • Current Hold (Ih): 1.6A
  • Current Trip (It): 3.2A
  • Time to Trip: 8s
  • Approvals: cURus and TUV
  • Suitable for: Various circuit protection applications
