Same model may have multiple batches, images only for reference.

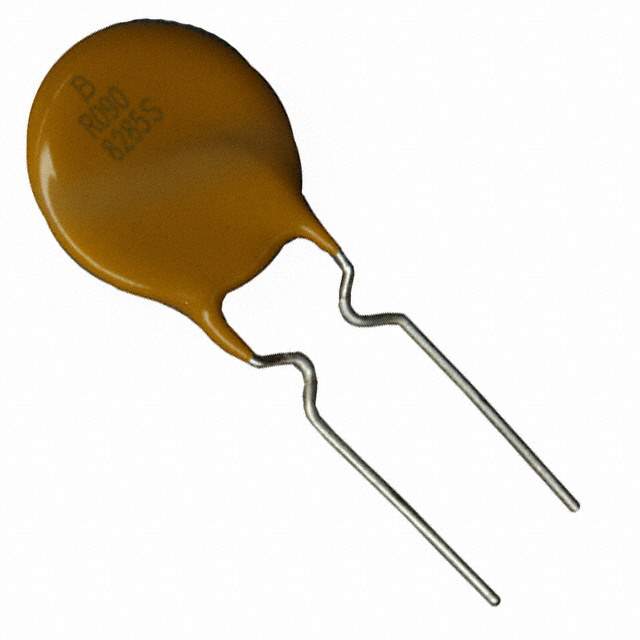

MF-R090-2 Real Image
Same model may have multiple batches, images only for reference.

MF-R090-2

Part No MF-R090-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R090-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 900mA
Current - Trip (It) 1.8A
Time to Trip 7.2s
Resistance - Initial (Ri) (Min) 140 mOhm
Resistance - Post Trip (R1) (Max) 470 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.461" L x 0.122" W (11.70mm x 3.10mm)
Height - Seated (Max) 0.657" (16.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003416-MF-R090-2
Ultra Librarian 3D Model Ultra Librarian MF-R090-2 CAD Model

Description

Bourns Inc. MF-R090-2 is a polymeric type circuit protection component that is approved by cURus and TUV.

  • Mounting Style: Through-hole
  • Height: 0.657 inches (16.70mm)
  • Voltage - Max: 60V
  • Current - Max: 40A
  • Current - Hold (Ih): 900mA
  • Current - Trip (It): 1.8A
  • Time to Trip: 7.2s
  • Resistance: 140 mOhm (initial) and 470 mOhm (post trip)
  • Application: Circuit protection
  • Made in: China
