SRU5028A-470Y

Part No SRU5028A-470Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU5028A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±30%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 620mA
Shielding Shielded
DC Resistance (DCR) 360mOhm Max
Q @ Freq 13 @ 2.52MHz
Frequency - Self Resonant 13MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRU5028A
Other Names SRU5028A-470Y,SRU5028A-470YCT,SRU5028A-470YTR,SRU5028A-470YDKR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273040-SRU5028A-470Y
Ultra Librarian 3D Model Ultra Librarian SRU5028A-470Y CAD Model

Description

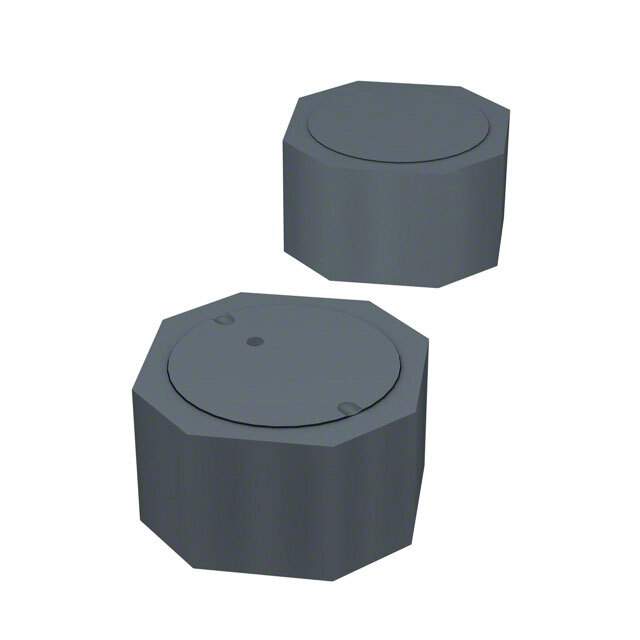

The SRU5028A-470Y inductor is a drum core wirewound type with a shielding feature.

  • Inductance: 47µH
  • Tolerance: ±30%
  • DC Resistance: 360mOhm Max
  • Current Rating: 700mA
  • Q @ Freq: 13 @ 2.52MHz
  • Frequency of Self-Resonant: 13MHz
  • Core Material: Ferrite
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.205" L x 0.205" W
  • Height: 0.118" (3.00mm)
  • AEC-Q200: Rated
  • Package: Non-standard
