Same model may have multiple batches, images only for reference.

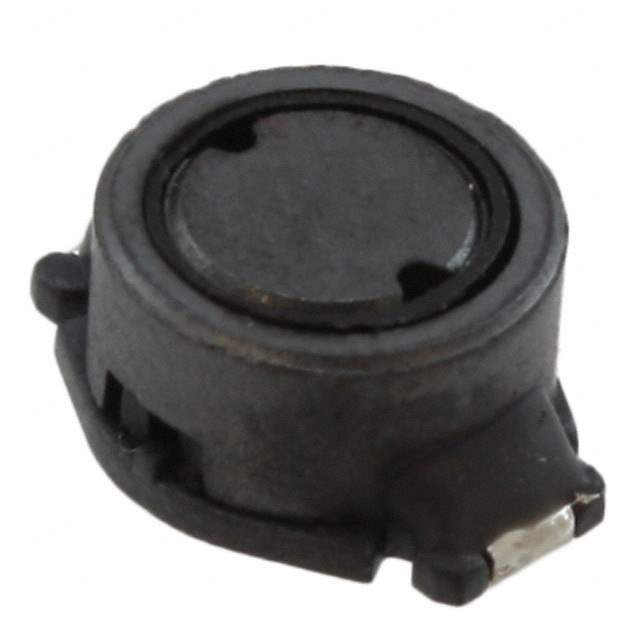

SRR0805-470Y Real Image
Same model may have multiple batches, images only for reference.

SRR0805-470Y

Part No SRR0805-470Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0805-470Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0805
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±15%
Current Rating (Amps) 750 mA
Current - Saturation (Isat) 1A
Shielding Shielded
DC Resistance (DCR) 280mOhm Max
Q @ Freq 32 @ 2.52MHz
Frequency - Self Resonant 10.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.413" L x 0.315" W (10.50mm x 8.00mm)
Height - Seated (Max) 0.185" (4.70mm)
Base Product Number SRR0805
Other Names SRR0805470Y,SRR0805-470YCT,SRR0805-470Y,SRR0805-470YTR,SRR0805-470YDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273696-SRR0805-470Y
Ultra Librarian 3D Model Ultra Librarian SRR0805-470Y CAD Model

Description

The Bourns Inc. SRR0805-470Y is a shielded, wirewound drum core inductor with a nonstandard package/case.

  • Inductance: 47 µH
  • Tolerance: ±15%
  • DC Resistance (DCR): 280mOhm Max
  • Current Rating: 750 mA
  • Q @ Freq: 32 @ 2.52MHz
  • Frequency Self-Resonant: 10.5MHz
  • Operating Temperature Range: -40°C ~ 125°C
  • ECCN: EAR99
  • REACH: REACH unaffected
  • Dimension: 0.413" L x 0.315" W (10.50mm x 8.00mm)
  • Mounting: SMD (SMT)
  • Package: tape & reel
