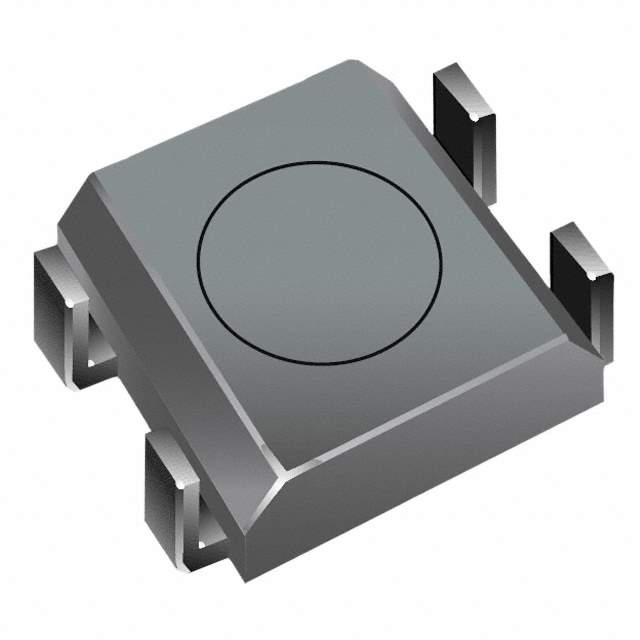

SRR0618-3R3ML Real Image
Same model may have multiple batches, images only for reference.

SRR0618-3R3ML

Part No SRR0618-3R3ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0618-3R3ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0618
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 1.4 A
Current - Saturation (Isat) 1.75A
Shielding Shielded
DC Resistance (DCR) 70mOhm Max
Q @ Freq 30 @ 100kHz
Frequency - Self Resonant 70MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.063" (1.60mm)
Base Product Number SRR0618
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273743-SRR0618-3R3ML
Ultra Librarian 3D Model Ultra Librarian SRR0618-3R3ML CAD Model

Description

The SRR0618-3R3ML is a fixed inductor that is manufactured by Bourns Inc.

  • Inductance: 3.3uH
  • Tolerance: ±20 percent
  • Maximum DC Resistance: 70mOhm
  • Maximum Current Rating: 1.4A
  • Package: nonstandard package
  • Suitable for use in: power supplies, DC-DC converters, and filters
