Same model may have multiple batches, images only for reference.

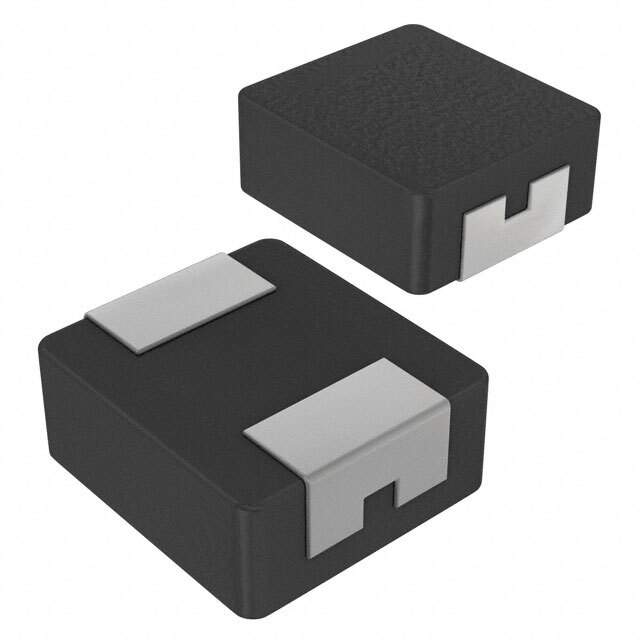

SRP4020TA-R68M Real Image
Same model may have multiple batches, images only for reference.

SRP4020TA-R68M

Part No SRP4020TA-R68M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP4020TA-R68M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP4020TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 7 A
Current - Saturation (Isat) 10A
Shielding Shielded
DC Resistance (DCR) 19mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 100MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRP4020TA
Other Names SRP4020TA-R68MTR,SRP4020TA-R68MDKR,SRP4020TA-R68MCT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273917-SRP4020TA-R68M
Ultra Librarian 3D Model Ultra Librarian SRP4020TA-R68M CAD Model

Description

The SRP4020TA series inductor is a drum core, wirewound type with a shielding feature.

  • Series: SRP4020TA
  • Type: Drum core, wirewound
  • Shielding: Shielded
  • Inductance: 680 nH
  • Height: 0.079" (2.00mm)
  • Package: Tape & Reel
  • Standard Package: 3,000
  • Mounting: SMT
  • Temperature Range: -40°C ~ 150°C
  • Core Material: Carbonyl powder
  • Inductance Frequency Test: 100 kHz
  • AEC-Q200: Rated
