Same model may have multiple batches, images only for reference.

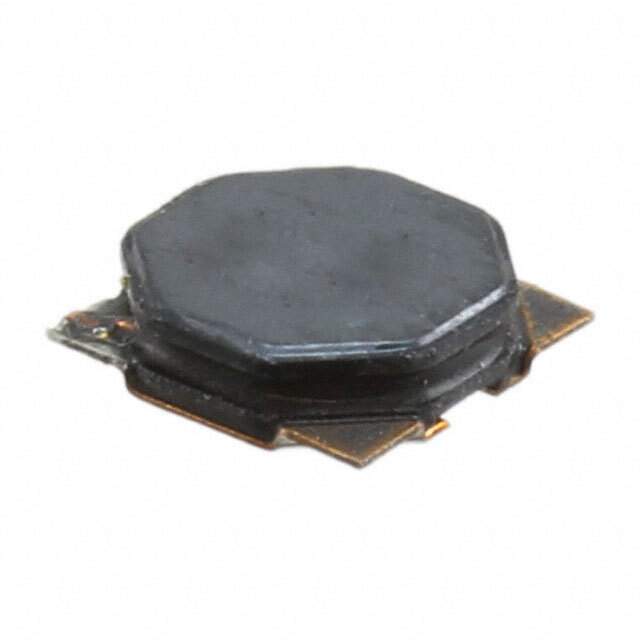

SRN4012-6R8M Real Image
Same model may have multiple batches, images only for reference.

SRN4012-6R8M

Part No SRN4012-6R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN4012-6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4012
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 900mA
Shielding Semi-Shielded
DC Resistance (DCR) 150mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRN4012
Other Names SRN4012-6R8MDKR,SRN4012-6R8MCT,SRN4012-6R8MTR
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274359-SRN4012-6R8M
Ultra Librarian 3D Model Ultra Librarian SRN4012-6R8M CAD Model

Description

The Bourns Inc. SRN4012-6R8M is a fixed inductor from the SRN4012 series.

  • Series: SRN4012
  • Core Type: Drum Core, Wirewound
  • Shielding: Semi-Shielded
  • Mounting: SMD (SMT)
  • Inductance: 6.8 µH
  • Maximum Height: 0.047 inches
  • Tolerance: ±20%
  • DC Resistance (DCR): 150mOhm max.
  • Package: Tape & Reel
