Same model may have multiple batches, images only for reference.

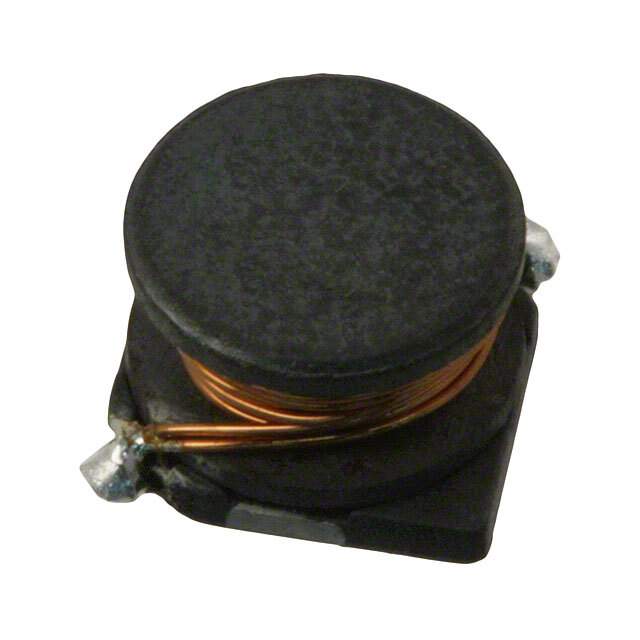

SDR7045-470K Real Image
Same model may have multiple batches, images only for reference.

SDR7045-470K

Part No SDR7045-470K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR7045-470K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR7045
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±10%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.1A
Shielding Unshielded
DC Resistance (DCR) 230mOhm Max
Q @ Freq 21 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR7045
Other Names -SDR7045-470KCT,SDR7045-470KTR,-SDR7045-470KTR,SDR7045470K,-SDR7045-470K,SDR7045-470KCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274478-SDR7045-470K
Ultra Librarian 3D Model Ultra Librarian SDR7045-470K CAD Model

Description

The Bourns Inc. SDR7045-470K is a fixed inductor with an inductance of 47 µH.

  • Manufacturer: Bourns Inc.
  • Type: drum core, wirewound type inductor
  • Shielding: unshielded
  • Package: 8-SMD, Gull Wing
  • Height: 0.189 inches
  • Temperature Range: -40°C to 125°C
  • DC Resistance (DCR): 230mOhm Max
  • Inductance Frequency Test: 100 kHz
  • Current Rating (amps): 1 A
