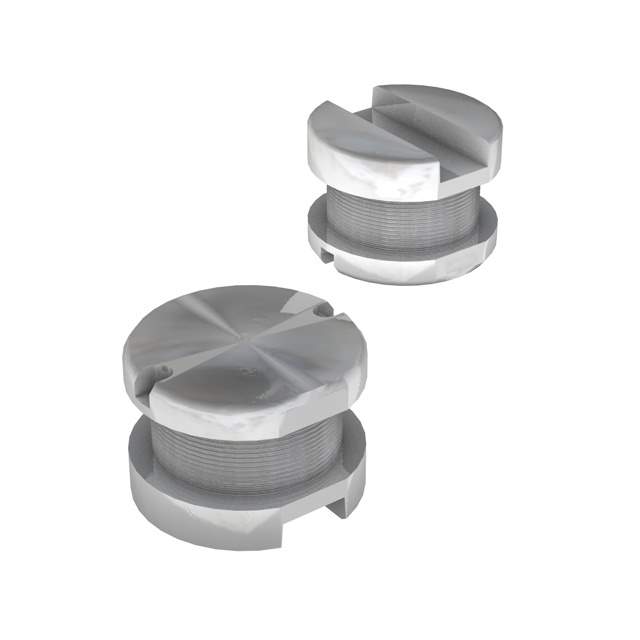

SDR0403-821KL Real Image
Same model may have multiple batches, images only for reference.

SDR0403-821KL

Part No SDR0403-821KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0403-821KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0403
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 820 µH
Tolerance ±10%
Current Rating (Amps) 100 mA
Current - Saturation (Isat) 150mA
Shielding Unshielded
DC Resistance (DCR) 12Ohm Max
Q @ Freq 38 @ 796kHz
Frequency - Self Resonant 2.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SDR0403
Other Names 118-SDR0403-821KLCT,118-SDR0403-821KLTR,SDR0403-821KLTR,SDR0403-821KL,118-SDR0403-821KLDKR,SDR0403-821KLTR,SDR0403821KL
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274829-SDR0403-821KL
Ultra Librarian 3D Model Ultra Librarian SDR0403-821KL CAD Model

Description

The SDR0403 series from Bourns Inc. is a drum core, wirewound inductor that comes in a tape and reel package.

  • Shielding: Unshielded
  • Inductance: 820 µH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Q value: 38 @ 796kHz
  • Self-Resonant Frequency: 2.5MHz
  • DC Resistance: 12Ohm Max
  • Current Rating: 100 mA
  • Temperature Range: -40°C to 125°C
  • Package Dimensions: 0.177" L x 0.157" W (4.50mm x 4.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
