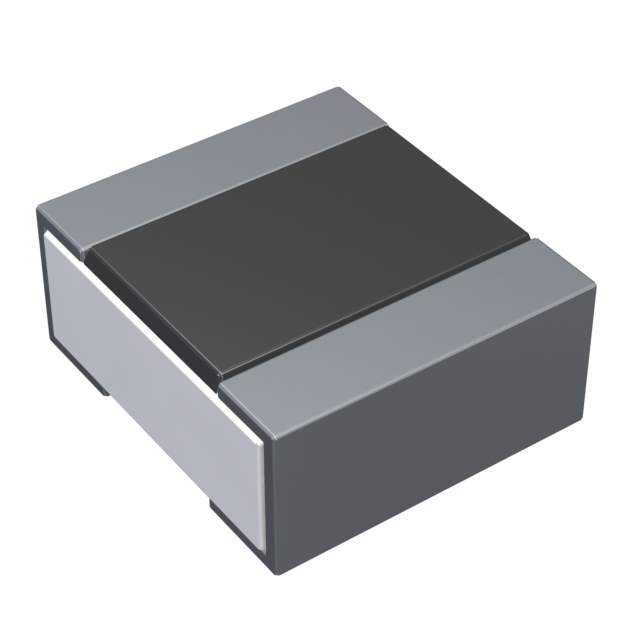

The CR0402-FX-4020GLF is a thick film chip resistor manufactured by Bourns, Inc. This surface mount resistor is designed for general purpose applications in electronic circuits.

Applications:

• Consumer electronics
• Industrial equipment
• Telecommunications
• Automotive electronics
• Medical devices
• Power supplies

Features:

• Small size (0402 package)
• Thick film resistive element
• Surface mount technology (SMT)
• RoHS compliant
• Wide resistance range

Benefits:

• Space-saving design for high-density PCBs
• Reliable performance
• Suitable for automated assembly
• Environmentally friendly
• Versatile for a variety of applications

Additional Details:

The CR0402-FX-4020GLF chip resistor comes in the 0402 package size, which refers to its physical dimensions (0.04 inches long by 0.02 inches wide). The 'FX' in the part number likely indicates a specific tolerance or temperature coefficient. The '4020' indicates a resistance value of 402 Ohms with a multiplier of 10^0, meaning 402 ohms (Consult the datasheet for definitive confirmation). The 'GLF' suffix typically indicates that the resistor is RoHS compliant and lead-free. It utilizes a thick film resistive element, which provides stable and reliable performance over a wide range of operating conditions. This resistor is designed for surface mount technology, making it suitable for automated assembly processes. Resistance values are typically indicated using a three-digit code, where the first two digits represent the significant figures, and the third digit represents the power of ten multiplier. Detailed electrical characteristics, including tolerance, temperature coefficient of resistance (TCR), power rating, and maximum operating voltage, can be found in the product datasheet from Bourns, Inc.

The CR0402-FX-4020GLF is a general-purpose chip resistor suitable for various applications. Its small size, reliable performance, and RoHS compliance make it a popular choice for modern electronic designs.
