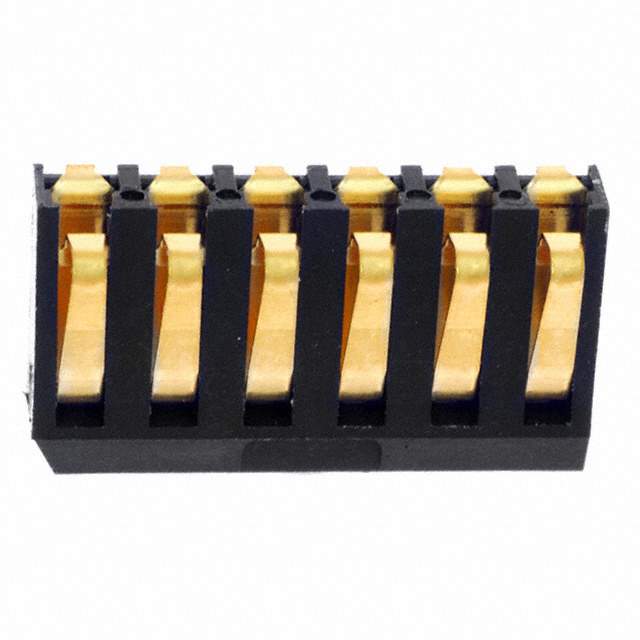

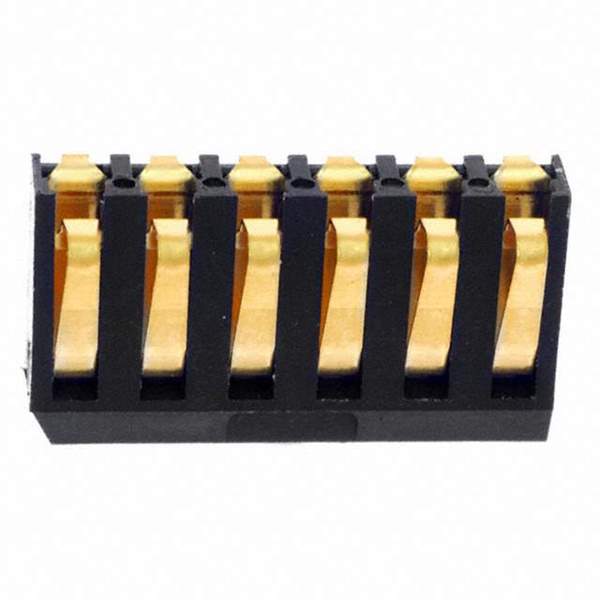

Same model may have multiple batches, images only for reference.

70AAJ-6-M0G

Name: 70AAJ-6-M0G
Brand: Bourns Inc.
SKU: 1172369
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	70AAJ-6-M0G
Manufacturer	Bourns Inc.
Catalog	Rectangular Connectors
Description	CONN SPRING MOD MALE 6POS SMD / 6 Position Spring Compression Contact, Male Connector Surface Mount
Datasheet	70AAJ-6-M0G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Spring Loaded
Mfr	Bourns Inc.
Series	70AA
Package	Tape & Reel
Connector Type	Compression Contact, Male
Number of Contacts	6
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting	SMD (SMT)
Material	Copper Alloy
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Base Product Number	70AAJ
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	70AAJ-6-M0GDKR,70AAJ-6-M0GTR,70AAJ6M0G,70AAJ-6-M0G-ND,70AAJ-6-M0GCT
Standard Package	750
Win Source Part Number	1172369-70AAJ-6-M0G
Ultra Librarian 3D Model	Ultra Librarian 70AAJ-6-M0G CAD Model

Alternative Products

Description

The 70AAJ-6-M0G is a rectangular connector from the 70AA series manufactured by Bourns Inc.

Contact Type: Compression
Gender: Male
Number of Contacts: 6
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Connector Pitch: 0.100" (2.54mm)
Mounting Type: Surface Mount Technology (SMT)
Package Type: Tape and Reel
Standard Package: 750
