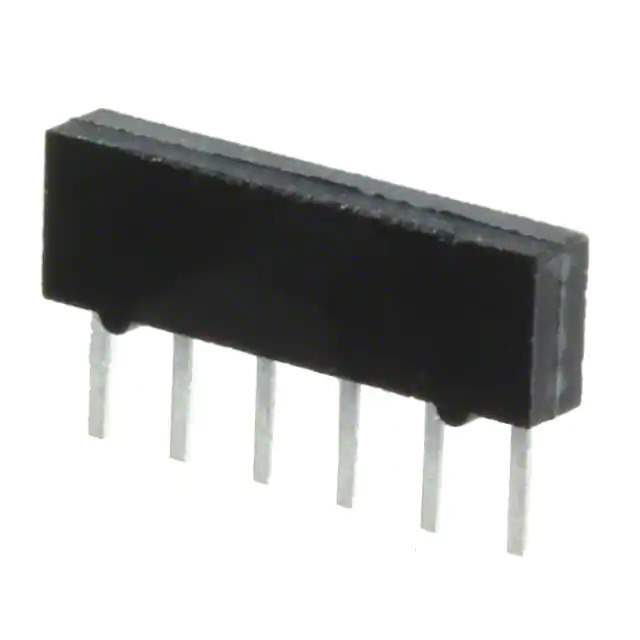

4306R-102-105LF Real Image
Same model may have multiple batches, images only for reference.

4306R-102-105LF

Part No 4306R-102-105LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 3 RES 1M OHM 6SIP
Datasheet
4306R-102-105LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4300R
Package Tube
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 1M
Tolerance ±2%
Number of Resistors 3
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 6
Power Per Element 300mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 6-SIP
Supplier Device Package 6-SIP
Size / Dimension 0.584" L x 0.085" W (14.83mm x 2.16mm)
Height - Seated (Max) 0.195" (4.95mm)
Base Product Number 4306R
Standard Package 35 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0050
California Prop 65 Warning Information
Win Source Part Number 743850-4306R-102-105LF
Ultra Librarian 3D Model Ultra Librarian 4306R-102-105LF CAD Model

Description

The 743850-4306R-102-105LF is a resistor network array with a resistance of 1M ohms.

  • Mounting: Designed for through hole mounting
  • Tolerance: ±2%
  • Circuit Type: 3 isolated resistors in a circuit type configuration
  • Power Per Element: 300mW
  • Temperature Range: -55°C to 125°C
  • Package Size: 0.584" L x 0.085" W (14.83mm x 2.16mm)
  • Package: 6-SIP package
  • Description: High resistance value and reliable performance.
  • Suitability: Ideal for various electronic applications.
