Same model may have multiple batches, images only for reference.

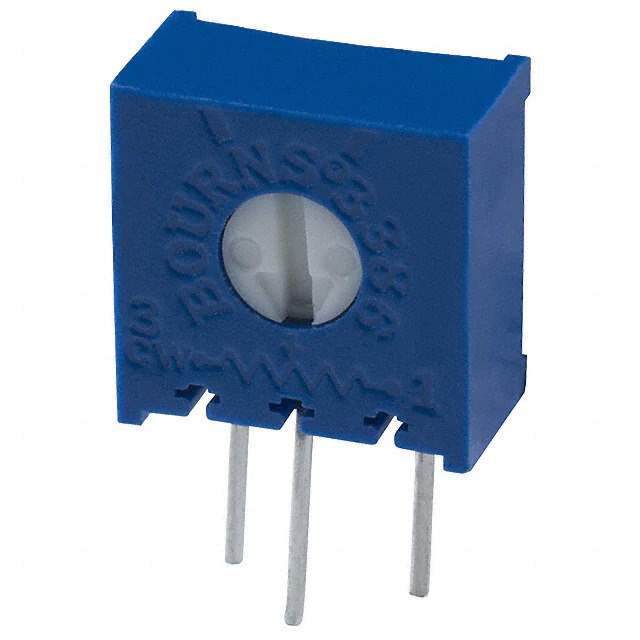

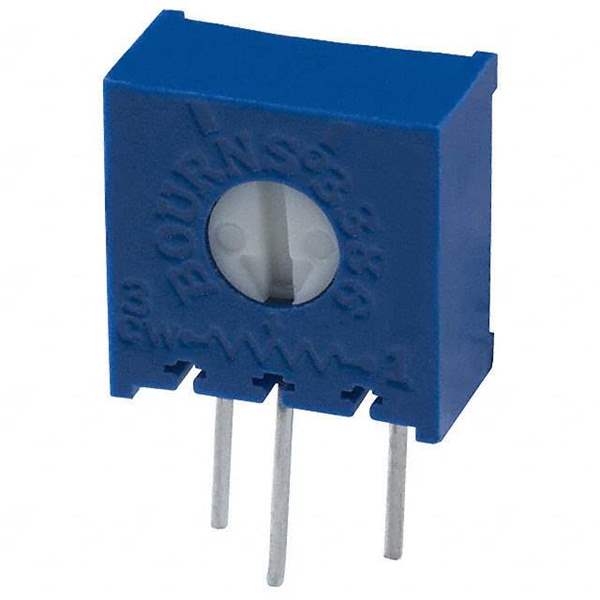

3386X-1-502LF Real Image
Same model may have multiple batches, images only for reference.

3386X-1-502LF

Part No 3386X-1-502LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.5W PC PIN SIDE / 5 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
Datasheet
3386X-1-502LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3386 - Sealed
Package Tube
Product Status Active
Resistance 5 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Square - 0.375" x 0.375" Face (9.53mm x 9.53mm)
Base Product Number 3386X
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855746-3386X-1-502LF
Ultra Librarian 3D Model Ultra Librarian 3386X-1-502LF CAD Model

Description

The 855746-3386X-1-502LF is a trimmer potentiometer from Bourns Inc. It belongs to the Trimpot® 3386 - Sealed series and has a square size of 0.375" x 0.375" face (9.53mm x 9.53mm).

  • Series: Trimpot® 3386 - Sealed
  • Size: 0.375" x 0.375" face (9.53mm x 9.53mm)
  • Mounting: Through-hole
  • Termination Style: PC pins
  • Adjustment Type: Side adjustment
  • Resistance: 5 kOhms
  • Tolerance: ±10%
  • Power Rating: 0.5W (1/2W)
  • Turns: 1
  • Product Status: Active
  • REACH: Complies
