Same model may have multiple batches, images only for reference.

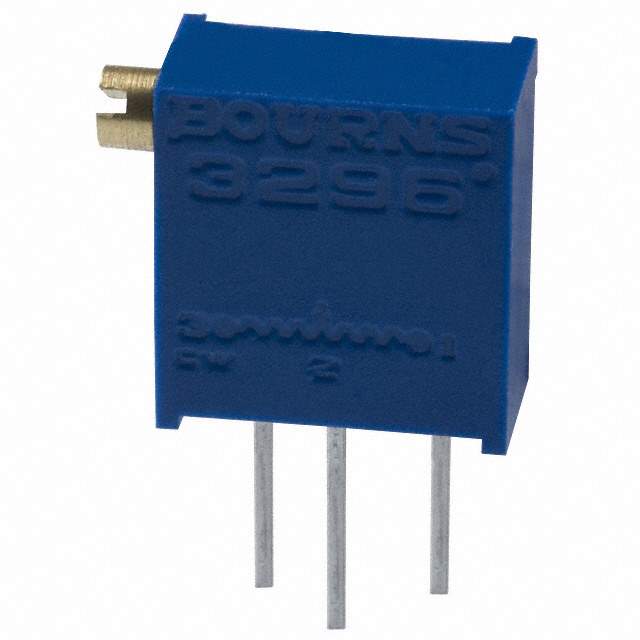

3296Z-1-201LF Real Image
Same model may have multiple batches, images only for reference.

3296Z-1-201LF

Part No 3296Z-1-201LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 200 OHM 0.5W PC PIN
Datasheet
3296Z-1-201LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3296 - Sealed
Packaging Tube
Resistance (Ohms) 200
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.395" x 0.190" Face x 0.395" H (10.03mm x 4.83mm x 10.03mm)
Win Source Part Number 763240-3296Z-1-201LF
Popularity Medium
Supply and Demand Status Limited
Family Name 3296
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3296Z-1-201LF CAD Model

Description

The Bourns Inc. Trimpot 3296 - Sealed is a 0.5W, 1/2W power rating potentiometer.

  • Power Rating: 0.5W, 1/2W
  • Resistance: 200 ohms
  • Turns: 25
  • Mounting Style: Through-hole
  • Termination Style: PC pins
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Adjustment Type: Side adjustment
  • Resistive Material: Cermet
  • Dimension: Rectangular (0.395" x 0.190" Face x 0.395" H (10.03mm x 4.83mm x 10.03mm))
  • Category: Potentiometers and variable resistors
  • Supply and Demand Status: Limited
  • Compliance: Halogen-free
  • Estimated EOL Date: 2027
  • ECCN: EAR99
  • Country of Origin: Costa Rica
