Same model may have multiple batches, images only for reference.

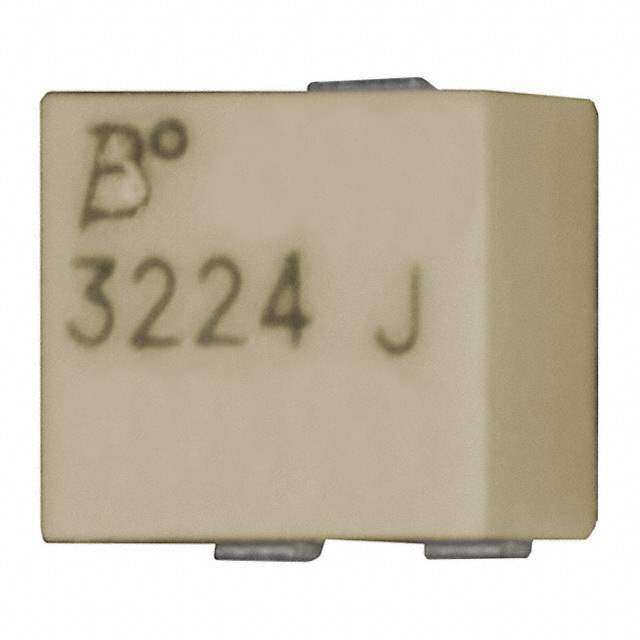

3224J-1-502E Real Image
Same model may have multiple batches, images only for reference.

3224J-1-502E

Part No 3224J-1-502E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.25W SMD
Datasheet
3224J-1-502E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 5k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.181" x 0.138" Face x 0.146" H (4.60mm x 3.50mm x 3.71mm)
Win Source Part Number 129130-3224J-1-502E
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian 3224J-1-502E CAD Model

Description

3224J-1-502E: Precision Resistor

The 3224J-1-502E is a high-precision resistor renowned for its reliability and performance in various electronic circuits. Ideal for applications demanding exact resistance values.

  • Applications: Precision amplifiers, Instrumentation, Medical devices
  • Features: High stability, Low temperature coefficient, Compact size

With an emphasis on precision, this component is perfect for projects requiring exact resistance measurements and consistent performance, ensuring the integrity of sensitive circuit operations.
