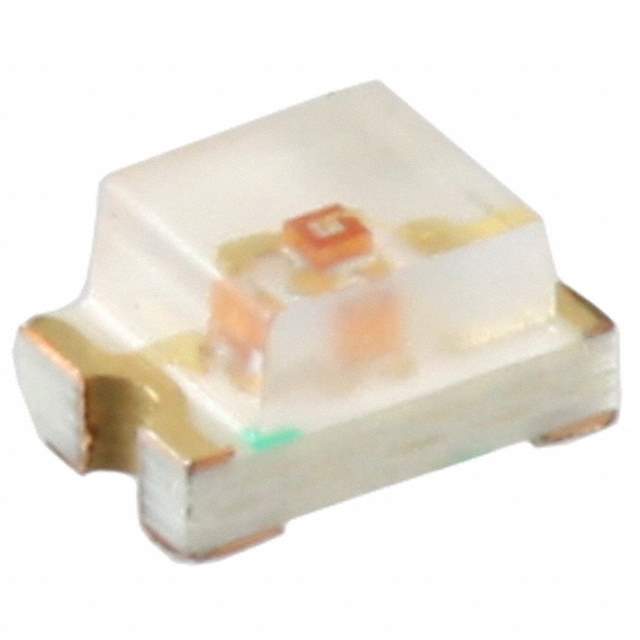

SM0805UOC Real Image
Same model may have multiple batches, images only for reference.

SM0805UOC

Part No SM0805UOC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED ORANGE CLEAR 0805 SMD / Orange 625nm LED Indication - Discrete 2.1V 0805 (2012 Metric)
Datasheet
SM0805UOC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel (TR)
Color Orange
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 80mcd
Lens Style Rectangle with Flat Top
Lens Size 1.40mm x 1.20mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Dominant 625nm
Wavelength - Peak 630nm
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 2.00mm L x 1.20mm W
Height (Max) 0.80mm
Base Product Number SM0805
Standard Package 4,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242255-SM0805UOC
Ultra Librarian 3D Model Ultra Librarian SM0805UOC CAD Model

Description

The 1242255-SM0805UOC is an orange LED indication discrete electronic component from Bivar Inc.

  • Configuration: Standard
  • Viewing Angle: 130 degrees
  • Lens Transparency: Clear
  • Millicandela Rating: 80mcd
  • Voltage-Forward (Vf): 2.1V (typical)
  • Package: Tape and reel (TR)
  • Standard Package: 4,000
  • Mounting: Surface-mount device (SMD)
  • Dimension: 2.00mm L x 1.20mm W
  • Lens Style: Rectangle with a flat top
  • Lens Size: 1.40mm x 1.20mm
