Same model may have multiple batches, images only for reference.

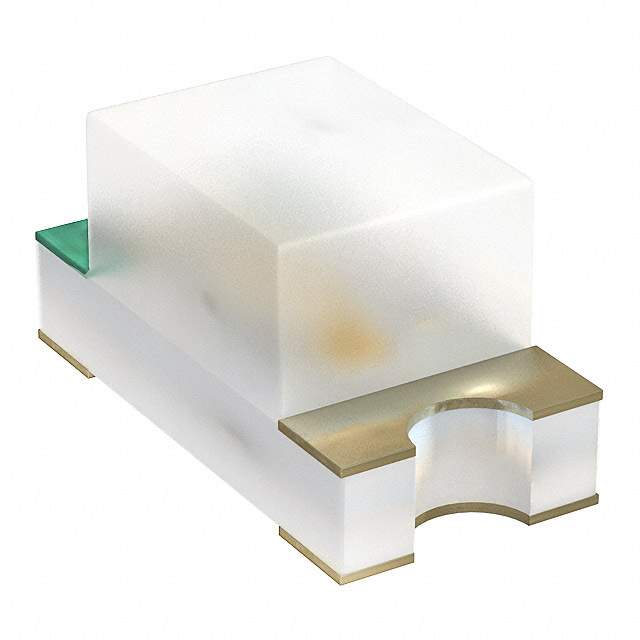

SM0603UWC Real Image
Same model may have multiple batches, images only for reference.

SM0603UWC

Part No SM0603UWC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED WHITE DIFFUSED 0603 SMD / White LED Indication - Discrete 3.3V 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel (TR)
Color White
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 440mcd
Lens Style Rectangle with Flat Top
Lens Size 1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ) 3.3V
Current - Test 20mA
Viewing Angle 110°
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.60mm
Base Product Number SM0603
Standard Package 4,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242245-SM0603UWC
Ultra Librarian 3D Model Ultra Librarian SM0603UWC CAD Model

Description

This is a high-quality LED Indication - Discrete component from Bivar Inc. with a Win Source Part Number of 1242245-SM0603UWC.

  • Color: White
  • Lens Transparency: Diffused
  • Package: Tape & Reel (TR)
  • Standard Package: 4,000
  • Mounting Type: SMD (SMT)
  • Configuration: Standard
  • Viewing Angle: 110 degrees
  • Lens Color: White
  • Millicandela Rating: 440mcd
  • Voltage-Forward (Vf) (Typ): 3.3V
  • Current-Test: 20mA
  • Wavelength-Dominant: Not specified
  • Wavelength-Peak: Not specified
  • Height (max): 0.60mm
  • Package/Case: 0603 (1608 Metric)
  • Supplier Device Package: 0603
  • Dimension: 1.60mm L x 0.80mm W
  • Lens Style: Rectangle with a flat top
  • Lens Size: 1.00mm x 0.80mm
  • MSL Level: 4 (72 hours)
  • HTSUS: 8541.41.0000
