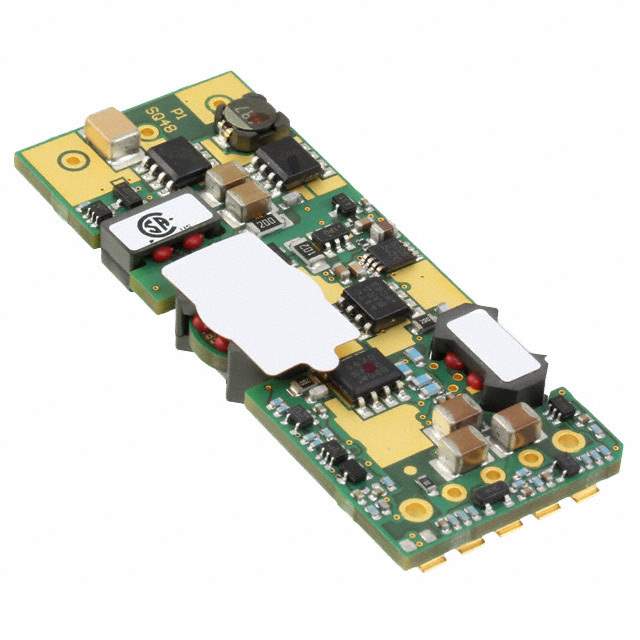

SQ48T04120-NBA0G Real Image
Same model may have multiple batches, images only for reference.

SQ48T04120-NBA0G

Part No SQ48T04120-NBA0G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 12V 48W
Datasheet
SQ48T04120-NBA0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Bel Power Solutions
Series SemiQ SQ48
Packaging Bulk
Type Intermediate Bus Converter
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 4A
Power (Watts) - Manufacture Series 48W
Voltage - Isolation 2kV (2000V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Mounting Style Through Hole
Package 8-DIP Module
Size / Dimension 2.30" L x 0.90" W x 0.34" H (58.4mm x 22.8mm x 8.5mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 87%
Power (Watts) - Max 48W
Win Source Part Number 192726-SQ48T04120-NBA0G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 48
Ultra Librarian 3D Model Ultra Librarian SQ48T04120-NBA0G CAD Model

Description

The Bel Power Solutions DC DC Converter is a high-performance intermediate bus converter that is designed to provide reliable and efficient power conversion.

  • Features: remote on/off, OCP, OTP, OVP, and UVLO
  • Power Output: 48W
  • Efficiency: 87%
  • Application: ITE (Commercial)
