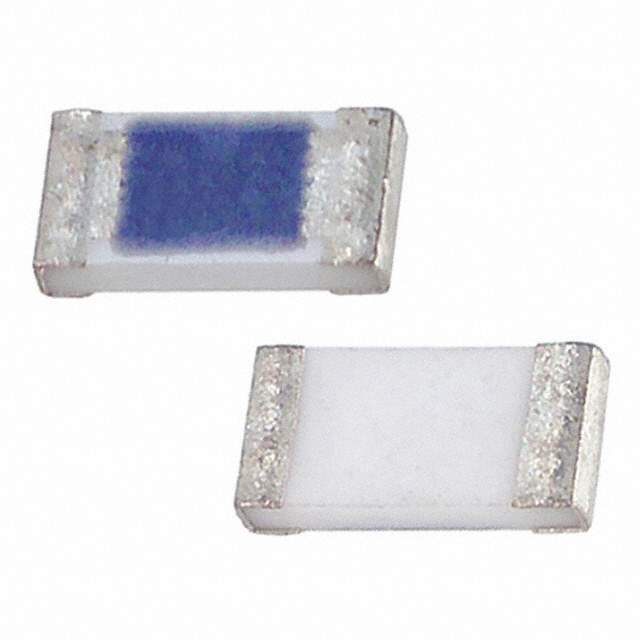

0685P3500-01 Real Image
Same model may have multiple batches, images only for reference.

0685P3500-01

Part No 0685P3500-01
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MT 3.5A 50VAC 63VDC SMD / 3.5 A 50 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
0685P3500-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Bel Fuse Inc.
Series 0685P
Package Tape & Reel
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3.5 A
Voltage Rating - AC 50 V
Voltage Rating - DC 63 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A AC, 100A DC
Melting I2t 2.6
Approval Agency AEC-Q200, CE, cURus
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)
DC Cold Resistance 0.051 Ohms
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1338284-0685P3500-01
Ultra Librarian 3D Model Ultra Librarian 0685P3500-01 CAD Model

Description

The Bel Fuse Inc. circuit protection fuse is a 3.5A board mount fast-blow fuse that is part of the 0685P series.

  • Series: 0685P
  • Current Rating: 3.5A
  • Voltage Rating (AC): 50V
  • Voltage Rating (DC): 63V
  • Breaking Capacity @ Rated Voltage: 50A AC, 100A DC
  • Melting I2t: 2.6
  • DC Cold Resistance: 0.051 ohms
  • Mounting Type: Surface Mount
  • Package/Case: 1206 (3216 Metric)
  • Operating Temperature: -55°C to 125°C
  • Dimensions: 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)
  • Approvals: AEC-Q200, CE, and cURus
