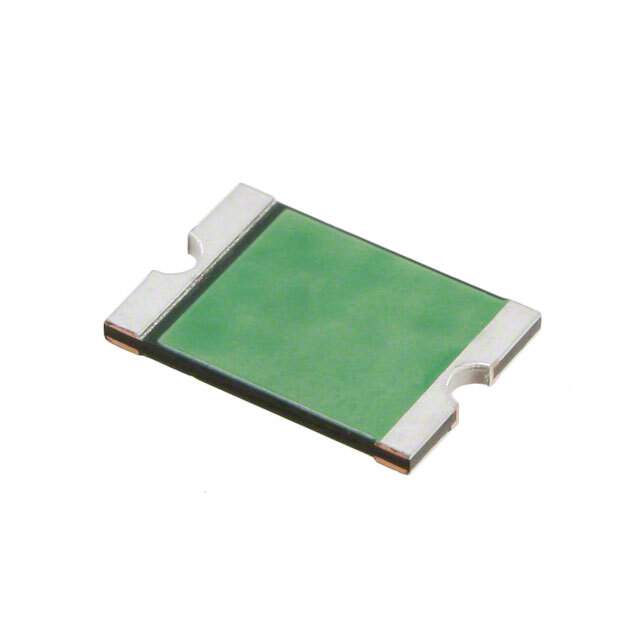

This high-quality PTC resettable fuse is designed to protect electronic circuits from overcurrent and short-circuit conditions and is manufactured by Bel Fuse Inc.

• Win Source Part Number: 1021004-0ZCF0050FF2C
• Category: Circuit Protection>PTC Resettable Fuses
• Type: Polymeric
• Packaging: Tape & reel
• Height - Seated (Max): -
• Standard Package: 2,000
• Thickness (Max): 0.045" (1.15mm)
• Lead Spacing: No lead spacing
• Voltage Rating: 60V
• Maximum Current Rating: 100 A
• Current - Hold (Ih) (Max): 500 mA
• Current - Trip (It): 1 A
• Time to Trip: 4 s
• Package / Case: 2920 (7351 Metric), Concave
• Operating Temperature Range: -40°C ~ 85°C
• Dimension: 0.290" L x 0.202" W (7.36mm x 5.12mm)
• Resistance - Initial (Ri) (Min): 300 mOhms
• Resistance - Post Trip (R1) (Max): 1.4 Ohms
• Approval: AEC-Q200, cURus, and TUV
