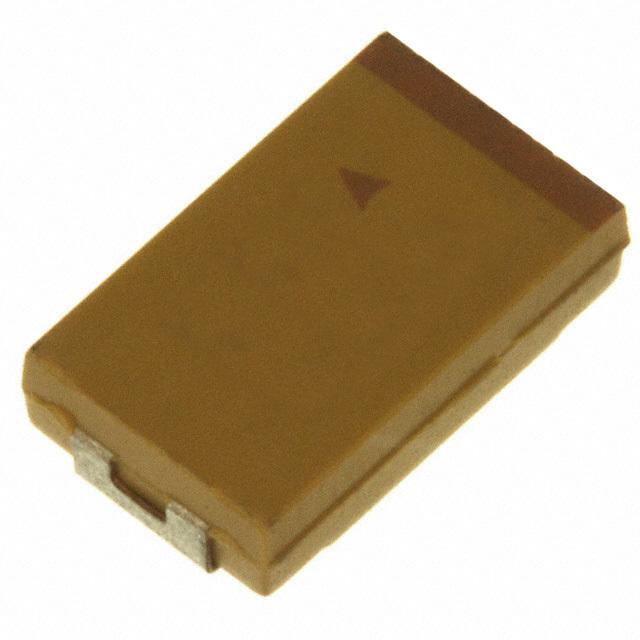

The TAJW227K006RNJ is a surface-mount, solid tantalum capacitor manufactured by AVX Corporation. It's designed for general-purpose applications where stable capacitance, low ESR (Equivalent Series Resistance), and high reliability are essential.

Applications

• Decoupling capacitors in power supply circuits.
• Filtering capacitors in signal processing applications.
• Bypass capacitors in digital circuits.
• DC-DC converters.
• General-purpose usage in consumer electronics, industrial equipment, and telecommunications.

Features

• Case Size: W Case
• Capacitance: 220µF (Microfarads)
• Voltage Rating: 6.3V (Volts DC)
• Tolerance: ±10%
• ESR (Equivalent Series Resistance): Low ESR (Consult datasheet for specific value)
• Termination: Surface Mount (SMD)
• Operating Temperature: -55°C to +125°C (typical)
• RoHS Compliant: Yes

Benefits

• Stable Capacitance: Tantalum capacitors offer excellent capacitance stability over temperature.
• Compact Size: The W case size is relatively compact for its capacitance value.
• Long Lifespan: Solid tantalum construction provides a long operational life.
• Low ESR: Minimizes power losses and improves circuit efficiency.
• Easy Assembly: Surface mount design allows for automated assembly processes.

Additional Details

The TAJW227K006RNJ utilizes tantalum pentoxide as its dielectric material, ensuring stable electrical characteristics. The surface mount configuration facilitates efficient board assembly and reduces parasitic inductance. It is important to consult the AVX datasheet for specific ESR values, ripple current ratings, and recommended voltage derating for optimal performance and reliability. The RNJ suffix might indicate specific packaging or testing requirements; consult the datasheet for details.
