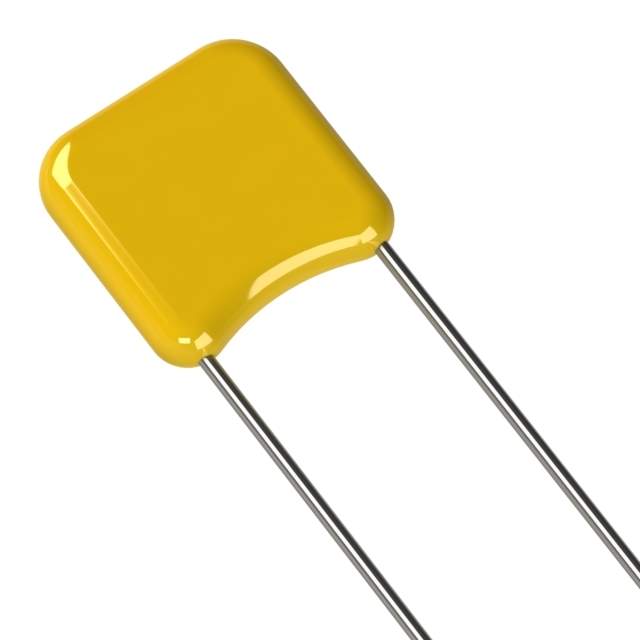

SR505E225MAATR1 Real Image
Same model may have multiple batches, images only for reference.

SR505E225MAATR1

Part No SR505E225MAATR1
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SR505E225MAATR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SkyCap® SR
Package Tape & Reel (TR)
Capacitance 2.2 µF
Tolerance ±20%
Voltage - Rated 50V
Temperature Coefficient Z5U
Temperature Range - Operating 10°C ~ 85°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max) 0.560" (14.22mm)
Lead Spacing 0.400" (10.16mm)
Lead Style Straight
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1304895-SR505E225MAATR1
Ultra Librarian 3D Model Ultra Librarian SR505E225MAATR1 CAD Model

Description

The SkyCap SR is a ceramic capacitor with a capacitance of 2.2 µF and a voltage rating of 50V.

  • Capacitance: 2.2 µF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Temperature Coefficient: Z5U
  • Package: Tape and reel (TR)
  • Mounting Type: Radial through-hole
  • Package Dimensions: 0.500" L x 0.200" W (12.70mm x 5.08mm)
  • Height when Seated: 0.560" (14.22mm)
  • Application: General purpose
  • Standard Package: 500
