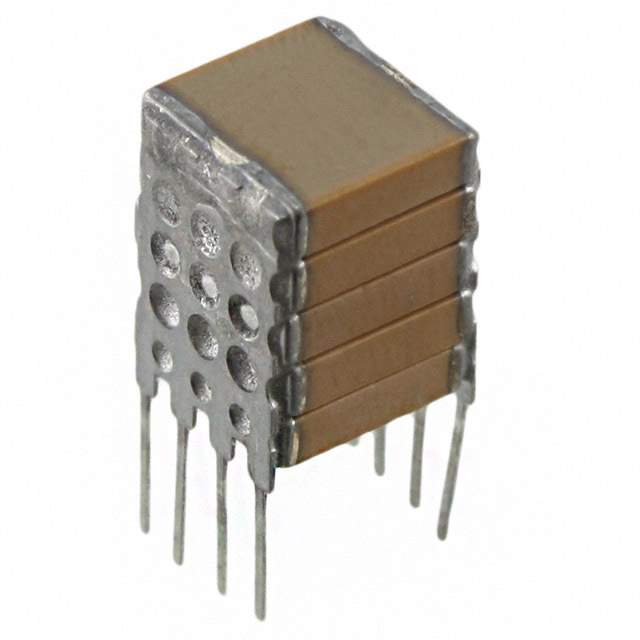

SMX45C505KAN360 Real Image
Same model may have multiple batches, images only for reference.

SMX45C505KAN360

Part No SMX45C505KAN360
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SMX45C505KAN360 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SMX
Package Bulk
Capacitance 5 µF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient X7R (VHT)
Temperature Range - Operating -55°C ~ 200°C
Features Low ESL (Stacked), High Temperature
Applications SMPS Filtering
Mounting Type Through Hole
Package / Case Stacked DIP, 8 Lead
Dimension 0.402" L x 0.441" W (10.20mm x 11.20mm)
Height - Seated (Max) 0.360" (9.14mm)
Lead Spacing 0.400" (10.16mm)
Other Names Q7248715,478-5591
Standard Package 40
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1304666-SMX45C505KAN360
Ultra Librarian 3D Model Ultra Librarian SMX45C505KAN360 CAD Model

Description

The KYOCERA AVX SMX45C505KAN360 is a ceramic capacitor that belongs to the SMX series of electronic components.

  • Feature: Low equivalent series inductance (ESL)
  • Application: Switched-mode power supply (SMPS) filtering
  • Capacitance: 5 µF
  • Voltage Rating: 50V
  • Tolerance: ±10%
  • Package: Stacked DIP, 8 lead
  • Height: 0.360" (9.14mm)
  • Temperature Coefficient: X7R (VHT)
  • Temperature Range: -55°C to 200°C
  • RoHS Compliance: RoHS non-compliant
