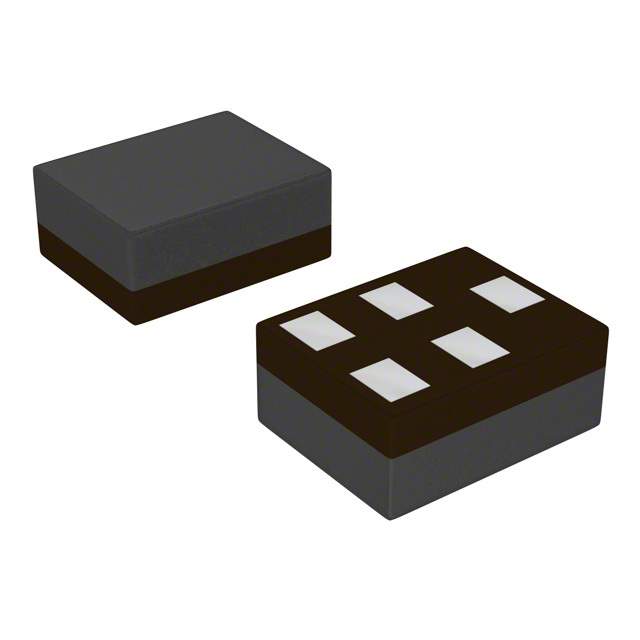

SF14-1582M5UUD1 Real Image
Same model may have multiple batches, images only for reference.

SF14-1582M5UUD1

Part No SF14-1582M5UUD1
Manufacturer AVX Corp/Kyocera Corp
Catalog SAW Filters
Description FILTER SAW 1.582GHZ 5SMD / 1.582GHz Frequency GPS RF SAW Filter (Surface Acoustic Wave) 1.4dB Bandwidth 5-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr KYOCERA AVX
Series SF, Kyocera
Package Tape & Reel (TR)
Frequency - Center 1.582GHz
Insertion Loss 1.4dB
Applications GPS
Mounting SMD (SMT)
Package / Case 5-SMD, No Lead
Height (Max) 0.028" (0.70mm)
Dimension 0.055" L x 0.043" W (1.40mm x 1.10mm)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Other Names SF14-1582M5UUD1-ND,478-SF14-1582M5UUD1
Standard Package 3,000
Win Source Part Number 1122982-SF14-1582M5UUD1
Ultra Librarian 3D Model Ultra Librarian SF14-1582M5UUD1 CAD Model

Description

The Kyocera SF14-1582M5UUD1 is a SAW filter electronic component that is perfect for GPS applications.

  • Bandwidth: -
  • Insertion loss: 1.4dB
  • Frequency center: 1.582GHz
  • RoHS: Unaffected
  • ECCN: EAR99
